TPS63021DSJR دیتاشیت

مشخصات دیتاشیت

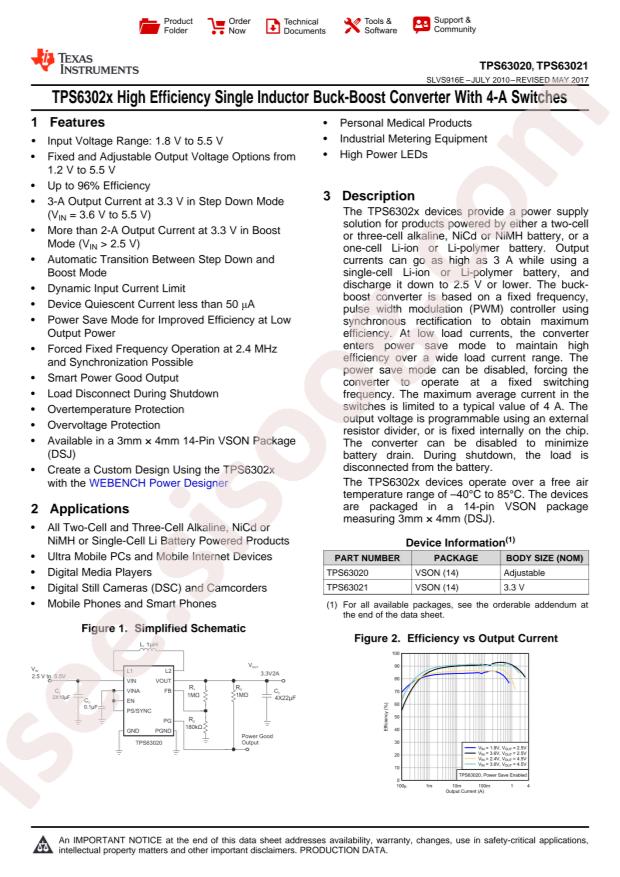

مشاهده دیتاشیت TPS63021DSJR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Buck-boost type
Topology: Step-down-Boost
Datasheet: Texas Instruments TPS63021DSJR
Output Type: Fixed
Input Voltage: 1.8V~5.5V
Output Voltage: 3.3V
Number of Outputs: 1
Switching Frequency: 2.4MHz
Output Current (Max): 3.5A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: DFN-14(3x4)
Manufacturer: Texas Instruments
Frequency - Switching: 2.4MHz
Package / Case: 14-VFDFN Exposed Pad
Supplier Device Package: 14-VSON (4x3)
Voltage - Output (Min/Fixed): 3.3V
Current - Output: 3.5A (Switch)
Output Configuration: Positive
Packaging: Cut Tape (CT)
Part Status: Active
Voltage - Output (Max): -
Series: -
Mounting Type: Surface Mount
Voltage - Input (Max): 5.5V
Base Part Number: TPS630
Voltage - Input (Min): 1.8V
Synchronous Rectifier: Yes
detail: Buck-Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 3.5A (Switch) 14-VFDFN Exposed Pad
