LM27762DSST دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LM27762DSST	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Charge pump
Topology: -

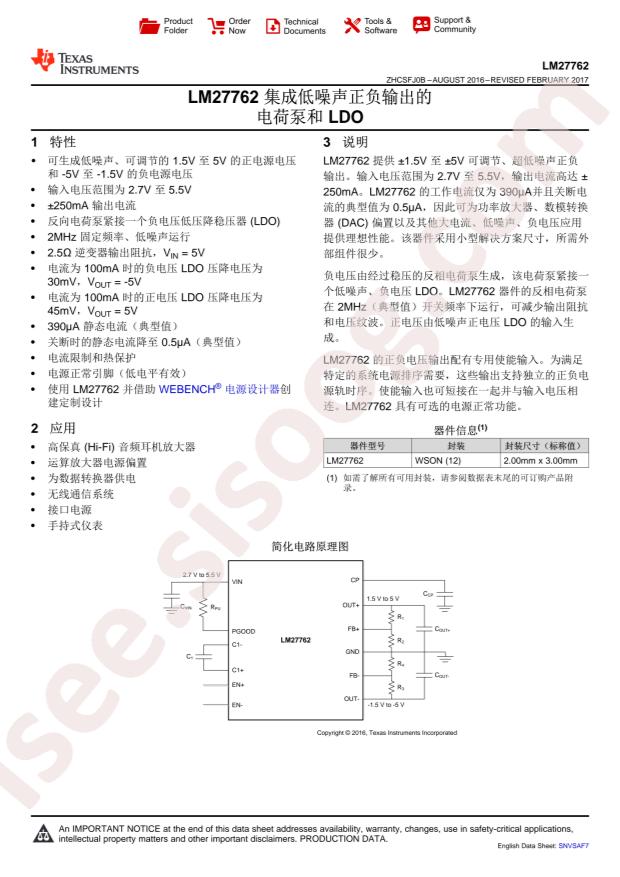

Datasheet: Texas Instruments LM27762DSST
Input Voltage: 2.7V~5.5V
Output Voltage: 1.5V~5V;-5V~-1.5V
Number of Outputs: 2
Switching Frequency: 2.3MHz
Output Current (Max): 250mA
Synchronous Rectification: NO
Package: DFN-12(2x3)
Manufacturer: Texas Instruments
Frequency - Switching: 1.7MHz ~ 2.3MHz
Package / Case: 12-WFDFN Exposed Pad
Supplier Device Package: 12-WSON (3x2)
Voltage - Output (Min/Fixed): -5V, 1.5V
Current - Output: 250mA
Operating Temperature: -40°C ~ 85°C (TA)
Output Configuration: Positive and Negative (Dual Rail)
Packaging: Cut Tape (CT)
Part Status: Active
Voltage - Output (Max): -1.5V, 5V
Series: -
Mounting Type: Surface Mount
Voltage - Input (Max): 5.5V
Output Type: Adjustable
Base Part Number: LM2776
Voltage - Input (Min): 2.7V
Synchronous Rectifier: No
detail: Charge Pump Switching Regulator IC Positive and Negative (Dual Rail) Adjustable -5V, 1.5V 2 - Dual Output 250mA 12-WFDFN Exposed Pad
