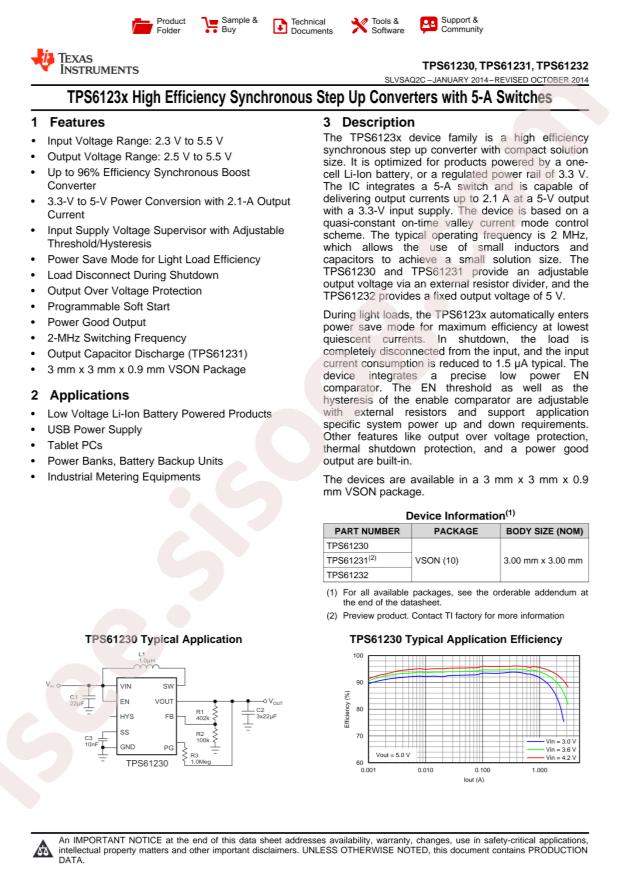

دیتاشیت TPS61230DRCR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS61230,31
|
| حجم فایل |
2152.956
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
Texas Instruments TPS61230DRCR
-
Input Voltage:
2.3V~5.5V
-
Output Voltage:
2.5V~5.5V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
4A
-
Synchronous Rectification:
Yes
-
Package:
DFN-10(3x3)
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
2MHz
-
Package / Case:
10-VFDFN Exposed Pad
-
Supplier Device Package:
10-VSON (3x3)
-
Voltage - Output (Min/Fixed):
2.5V
-
Current - Output:
4A (Switch)
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
5.5V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
5.5V
-
Output Type:
Adjustable
-
Base Part Number:
TPS612
-
Voltage - Input (Min):
2.3V
-
Synchronous Rectifier:
Yes
-
detail:
Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 4A (Switch) 10-VFDFN Exposed Pad
