TPS73801 دیتاشیت

TPS73801

مشخصات دیتاشیت

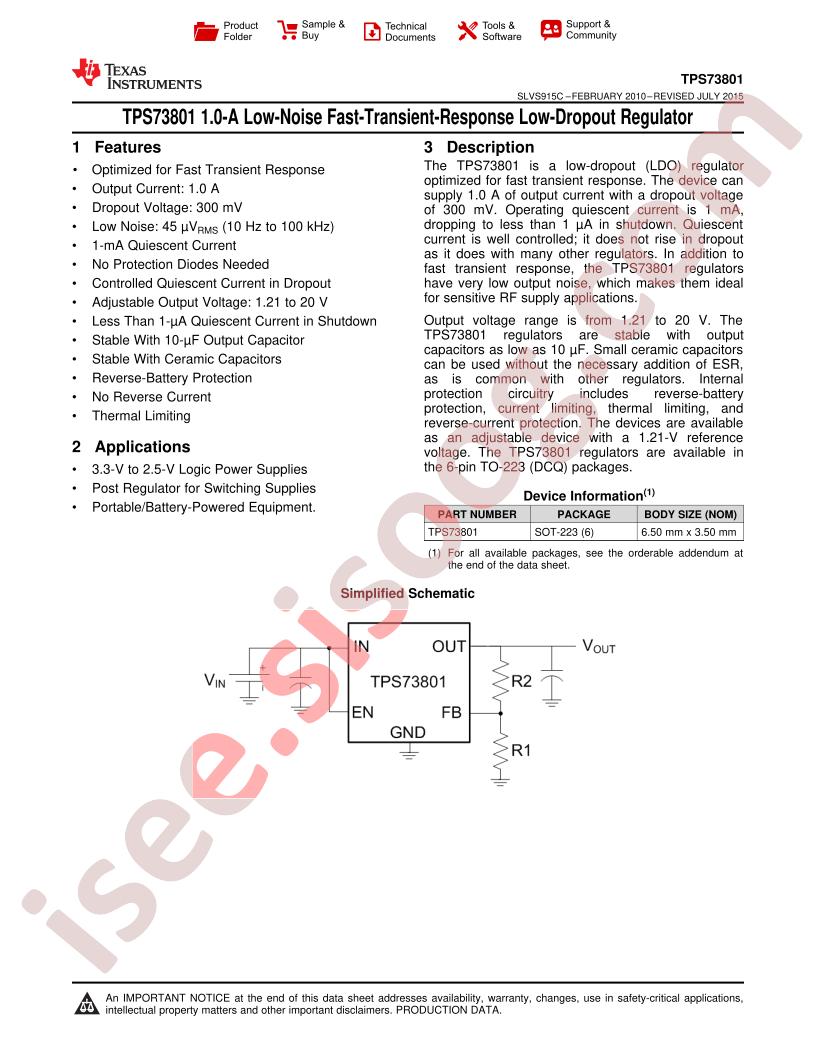

نام دیتاشیت TPS73801
حجم فایل 1980.285 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

مشاهده دیتاشیت TPS73801

دانلود دیتاشیت

سایر مستندات

TPS73801DCQR 21 pages

TPS73801DCQR 26 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS73801DCQR
  • Output Type: Adjustable
  • Output Current: 1A
  • Output Voltage: 1.21V~20V
  • Dropout Voltage: 500mV@(1A)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 20V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 1.5mA
  • Power Supply Rejection Ratio (PSRR): 58dB@(100Hz),37dB@(10kHz)
  • Package: SOT-223-6
  • Manufacturer: Texas Instruments
  • Voltage Dropout (Max): 0.5V @ 1A
  • Package / Case: SOT-223-6
  • Control Features: Enable
  • Current - Output: 1A
  • Output Configuration: Positive
  • Voltage - Output (Min/Fixed): 1.21V
  • Supplier Device Package: SOT-223-6
  • Part Status: Active
  • Current - Supply (Max): 80mA
  • Base Part Number: TPS738
  • PSRR: 58dB ~ 37dB (100Hz ~ 10kHz)
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Packaging: Cut Tape (CT)
  • Voltage - Output (Max): 20V
  • Voltage - Input (Max): 20V
  • Series: -
  • Mounting Type: Surface Mount
  • Current - Quiescent (Iq): 1.5mA
  • Number of Regulators: 1
  • detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-6
