TPS73801DCQR دیتاشیت

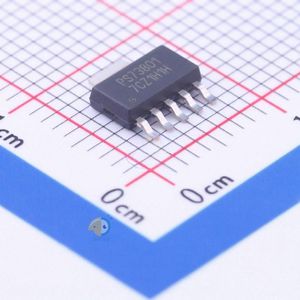

TPS73801DCQR

مشخصات دیتاشیت

نام دیتاشیت TPS73801DCQR
حجم فایل 86.832 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

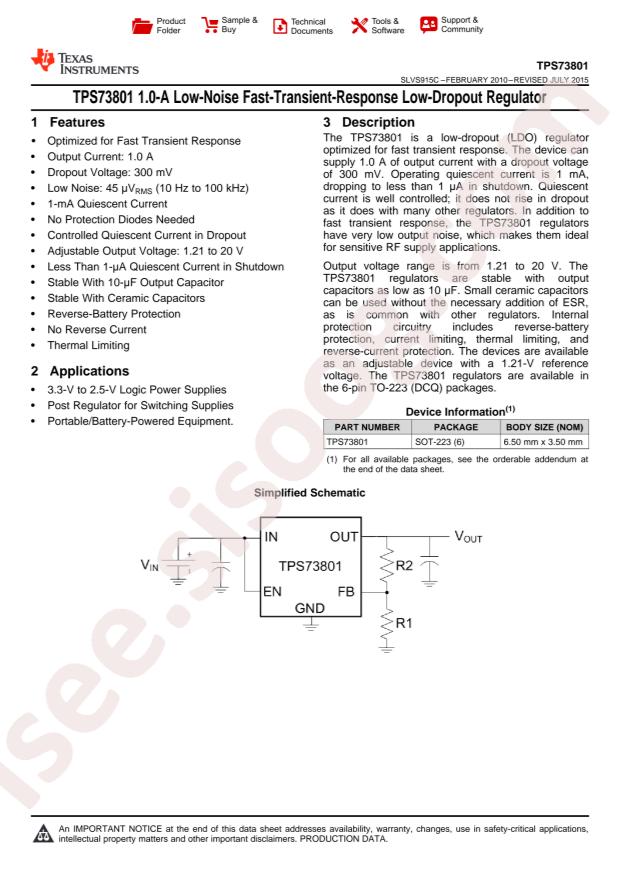

مشاهده دیتاشیت TPS73801DCQR

دانلود دیتاشیت

سایر مستندات

TPS73801 25 pages

TPS73801DCQR 21 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS73801DCQR
  • Output Type: Adjustable
  • Output Current: 1A
  • Output Voltage: 1.21V~20V
  • Dropout Voltage: 500mV@(1A)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 20V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 1.5mA
  • Power Supply Rejection Ratio (PSRR): 58dB@(100Hz),37dB@(10kHz)
  • Package: SOT-223-6
  • Manufacturer: Texas Instruments
  • Voltage Dropout (Max): 0.5V @ 1A
  • Package / Case: SOT-223-6
  • Control Features: Enable
  • Current - Output: 1A
  • Output Configuration: Positive
  • Voltage - Output (Min/Fixed): 1.21V
  • Supplier Device Package: SOT-223-6
  • Part Status: Active
  • Current - Supply (Max): 80mA
  • Base Part Number: TPS738
  • PSRR: 58dB ~ 37dB (100Hz ~ 10kHz)
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Packaging: Cut Tape (CT)
  • Voltage - Output (Max): 20V
  • Voltage - Input (Max): 20V
  • Series: -
  • Mounting Type: Surface Mount
  • Current - Quiescent (Iq): 1.5mA
  • Number of Regulators: 1
  • detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-6
