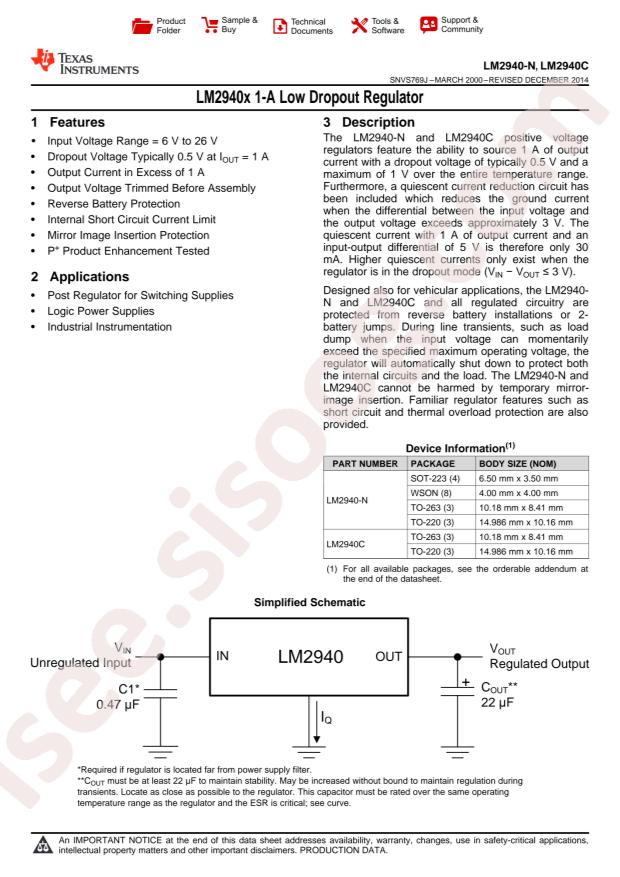

دیتاشیت LM2940SX-5.0/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2940-N, 2940C Datasheet |
|---|---|
| حجم فایل | 2420.282 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 37 |
دانلود دیتاشیت LM2940-N, 2940C Datasheet |
LM2940-N, 2940C Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM2940SX-5.0/NOPB
- Output Type: Fixed
- Output Current: 1A
- Output Voltage: 5V
- Dropout Voltage: 1V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 26V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 10mA
- Power Supply Rejection Ratio (PSRR): 64dB@(120Hz)
- Package: TO-263-3
- Manufacturer: Texas Instruments
- Series: -
- Voltage - Output (Max): -
- Output Configuration: Positive
- Voltage Dropout (Max): 1V @ 1A
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 5V
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
- PSRR: 64dB (120Hz)
- Supplier Device Package: DDPAK/TO-263-3
- Current - Quiescent (Iq): 10mA
- Base Part Number: LM2940
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Voltage - Input (Max): 26V
- Current - Output: 1A
- Part Status: Not For New Designs
- Current - Supply (Max): 15mA
- Control Features: -
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- detail: Linear Voltage Regulator IC 1 Output 1A DDPAK/TO-263-3
