دیتاشیت TPS62130AQRGTRQ1

مشخصات دیتاشیت

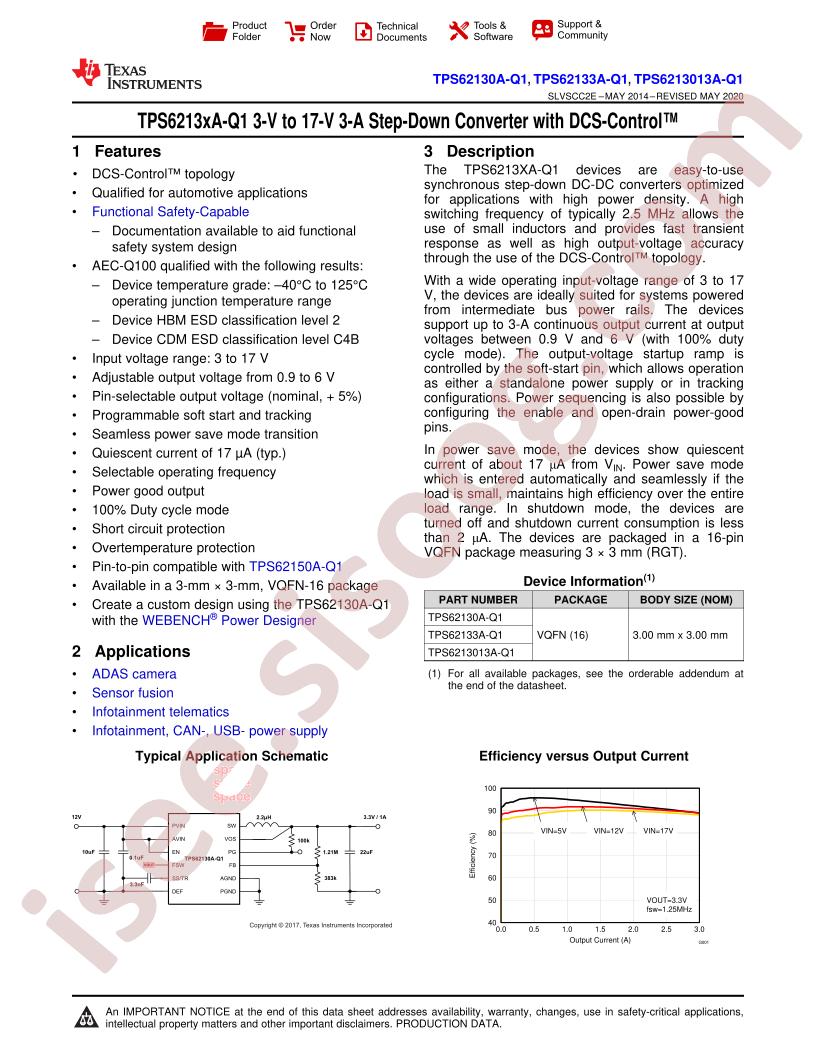

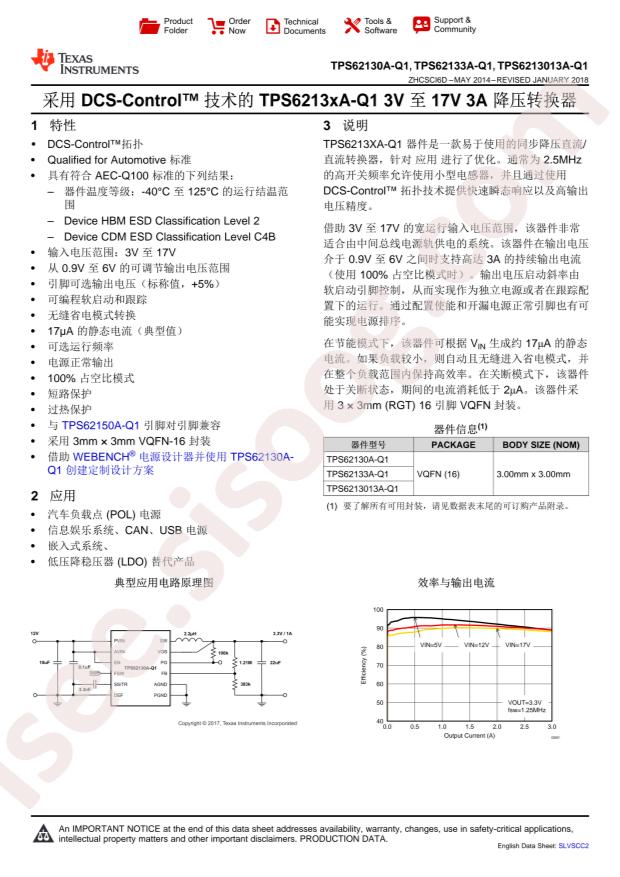

دانلود دیتاشیت TPS62130A-Q1,TPS62133A-Q1	TPS62130A-Q1,TPS62133A-Q1 Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS62130AQRGTRQ1
Output Type: Adjustable
Input Voltage: 3V~17V
Output Voltage: 0.9V~6V
Number of Outputs: 1
Switching Frequency: 2.5MHz
Output Current (Max): 3A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: QFN-16-EP(3x3)
Manufacturer: Texas Instruments
Frequency - Switching: 2.5MHz
Package / Case: 16-VFQFN Exposed Pad
Supplier Device Package: 16-QFN (3x3)
Voltage - Output (Min/Fixed): 0.9V
Current - Output: 3A
Output Configuration: Positive
Packaging: Digi-Reel®
Part Status: Active
Voltage - Output (Max): 6V
Series: Automotive, AEC-Q100, DCS-Control™
Mounting Type: Surface Mount
Voltage - Input (Max): 17V
Base Part Number: TPS621
Voltage - Input (Min): 3V
Synchronous Rectifier: Yes
detail: Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 3A 16-VFQFN Exposed Pad
