- دیتاشیت TLV1704AIPWR
TLV1704AIPWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TLV1704AIPWR |
|---|---|
| حجم فایل | 104.574 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |

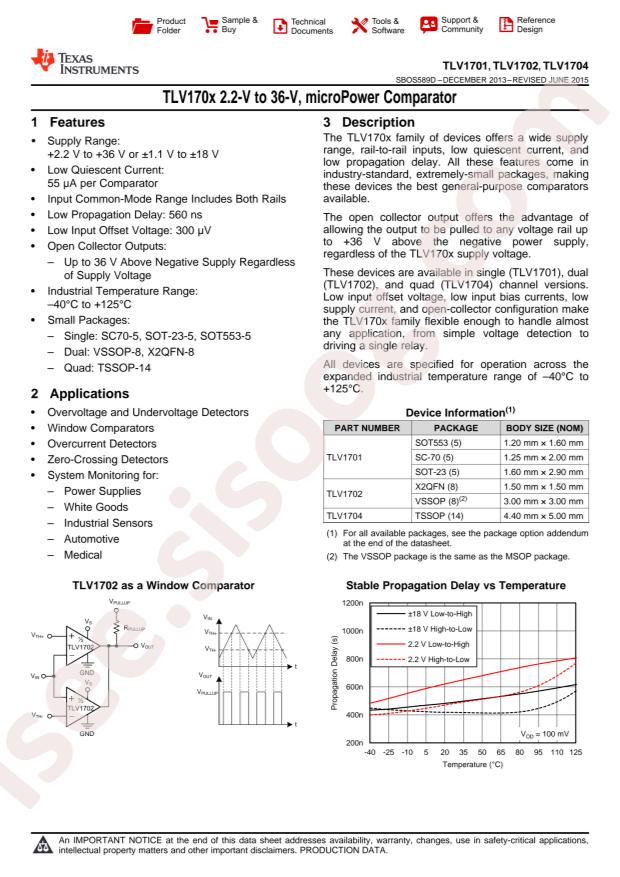

دانلود دیتاشیت TLV1704AIPWR |
دانلود دیتاشیت |
|---|
سایر مستندات
TLV1701, 02, 04 Datasheet 33 pages
مشخصات فنی
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments TLV1704AIPWR
- Output Type: 开集
- Supply Current: 75uA
- Supply Voltage: 2.2V~36V;1.1V~18V
- Number of Elements: 4
- Operating Temperature: -40°C~+125°C
- Propagation Delay Time: 560ns
- Input Bias Current (Ib): 0.015uA
- Input Offset Voltage (Vos): 3.5mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): -
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- CMRR, PSRR (Typ): -
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Hysteresis: -
- Type: General Purpose
- Voltage - Supply, Single/Dual (±): 2.2V ~ 36V, ±1.1V ~ 18V
- Packaging: Cut Tape (CT)
- Supplier Device Package: 14-TSSOP
- Current - Input Bias (Max): 15nA
- Part Status: Active
- Base Part Number: TLV170
- Series: -
- Voltage - Input Offset (Max): 3.5mV
- Mounting Type: Surface Mount
- Current - Output (Typ): 20mA
- Current - Quiescent (Max): 75µA
- Propagation Delay (Max): 560ns
- detail: Comparator General Purpose Open Collector 14-TSSOP
