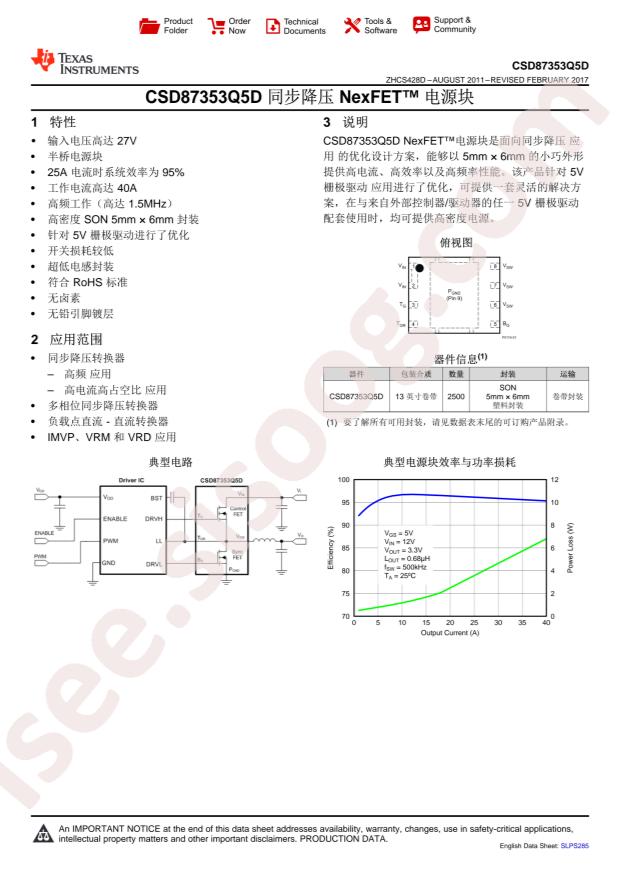

CSD87353Q5D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD87353Q5D
|
|
حجم فایل
|
68.252
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD87353Q5D
-
Package:
HVSON-8-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Vgs(th) (Max) @ Id:
2.1V @ 250µA
-
Input Capacitance (Ciss) (Max) @ Vds:
3190pF @ 15V
-
Package / Case:
8-PowerLDFN
-
Series:
NexFET™
-
Drain to Source Voltage (Vdss):
30V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Gate Charge (Qg) (Max) @ Vgs:
19nC @ 4.5V
-
Current - Continuous Drain (Id) @ 25°C:
40A
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
8-LSON (5x6)
-
Part Status:
Active
-
Base Part Number:
CSD87353
-
FET Feature:
Logic Level Gate
-
Mounting Type:
Surface Mount
-
FET Type:
2 N-Channel (Half Bridge)
-
Power - Max:
12W
-
Rds On (Max) @ Id, Vgs:
-
-
detail:
Mosfet Array 2 N-Channel (Half Bridge) 30V 40A 12W Surface Mount 8-LSON (5x6)
