TPS7A6533QKVURQ1 دیتاشیت

مشخصات دیتاشیت

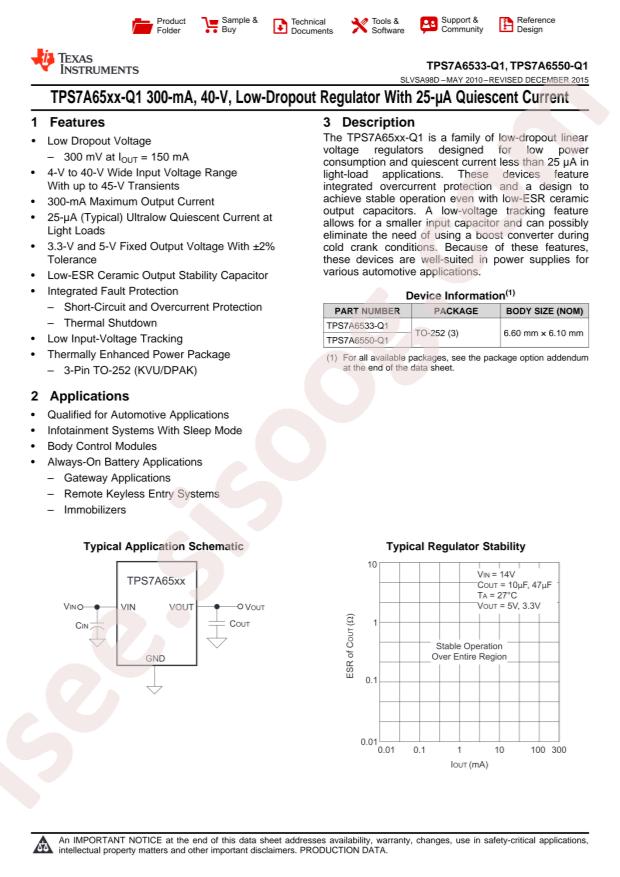

مشاهده دیتاشیت TPS7A6533QKVURQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS7A6533QKVURQ1
Output Type: Fixed
Output Current: 300mA
Output Voltage: 3.3V
Dropout Voltage: 500mV@(250mA)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 40V
Operating Temperature: -40°C~+150°C
Quiescent Current (Ground Current): 40uA
Power Supply Rejection Ratio (PSRR): 60dB@(100Hz),30dB@(150kHz)
Package: TO-252
Manufacturer: Texas Instruments
Voltage - Output (Min/Fixed): 3.3V
Voltage Dropout (Max): 0.5V @ 250mA
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Control Features: Enable, Reset
Supplier Device Package: TO-252-3
Current - Output: 300mA
Voltage - Output (Max): -
Packaging: Cut Tape (CT)
Mounting Type: Surface Mount
Part Status: Active
Output Configuration: Positive
Series: Automotive, AEC-Q100
Base Part Number: TPS7A6
Voltage - Input (Max): 40V
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO), Watchdog
PSRR: 60dB ~ 30dB (100Hz ~ 150kHz)
Number of Regulators: 1
Current - Quiescent (Iq): 40µA
detail: Linear Voltage Regulator IC 1 Output 300mA TO-252-3
