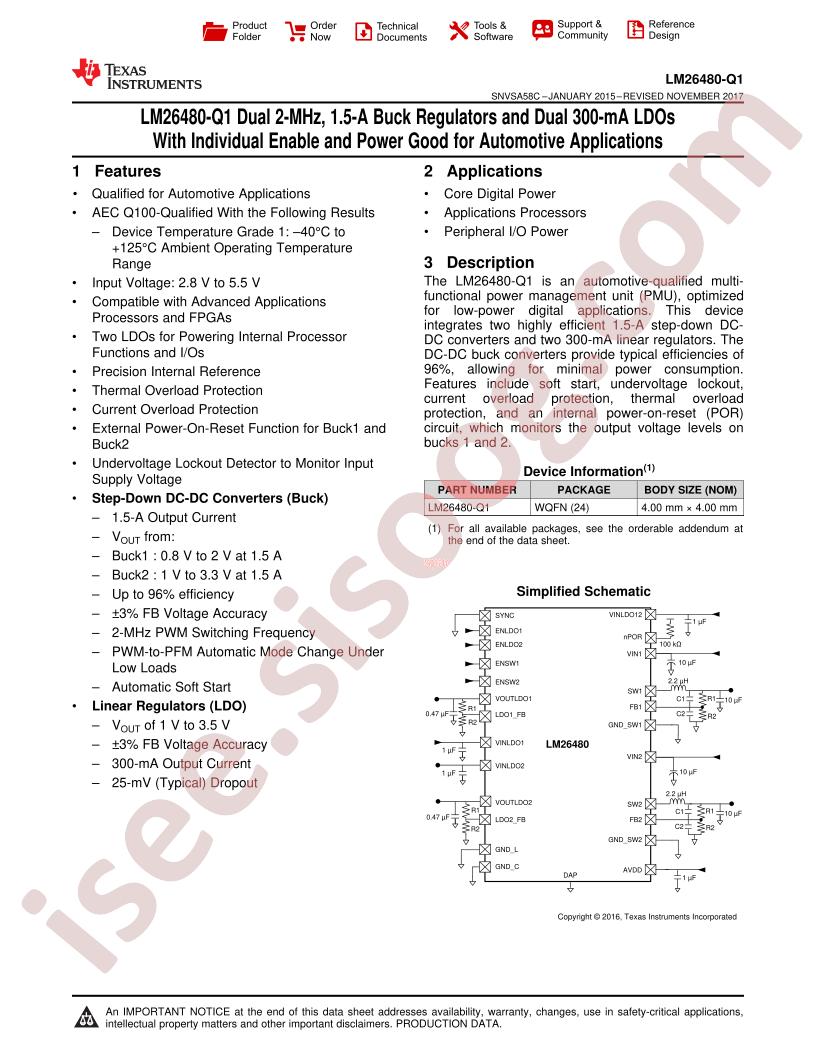

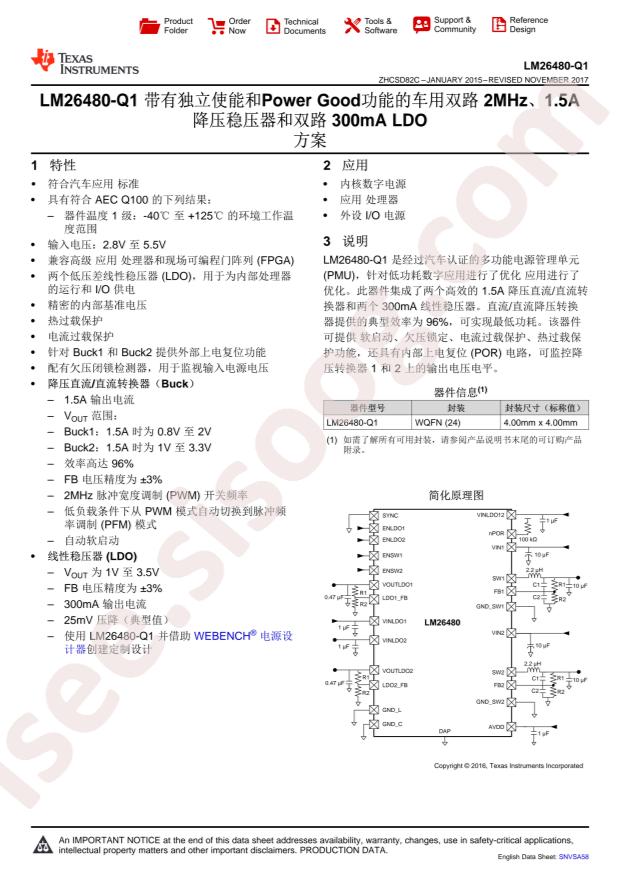

دیتاشیت LM26480QSQ-AA/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM26480-Q1 Datasheet |
|---|---|
| حجم فایل | 7295.017 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 41 |
دانلود دیتاشیت LM26480-Q1 Datasheet |
LM26480-Q1 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Topology: Step-down
- Datasheet: Texas Instruments LM26480QSQ-AA/NOPB
- Number of Outputs: 4
- Switching Frequency: 2MHz
- Operating Temperature: -40°C~+85°C
- Package: QFN-24-EP(4x4)
- Manufacturer: Texas Instruments
- Frequency - Switching: 2MHz
- Package / Case: 24-WFQFN Exposed Pad
- Voltage/Current - Output 2: 1V ~ 3.3V, 1.5A
- Voltage/Current - Output 3: 1V ~ 3.5V, 300mA
- Voltage/Current - Output 1: 0.8V ~ 2V, 1.5A
- w/Sequencer: No
- Packaging: Cut Tape (CT)
- Supplier Device Package: 24-WQFN (4x4)
- w/Supervisor: No
- Part Status: Active
- Base Part Number: LM26480
- Series: Automotive, AEC-Q100
- Mounting Type: Surface Mount
- Voltage - Supply: 2.8V ~ 5.5V
- w/LED Driver: No
- detail: PMIC - Voltage Regulators - Linear + Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 2MHz 24-WQFN (4x4)
