دیتاشیت LP38513TJ-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP38513-ADJ |
|---|---|
| حجم فایل | 1129.922 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت LP38513-ADJ |

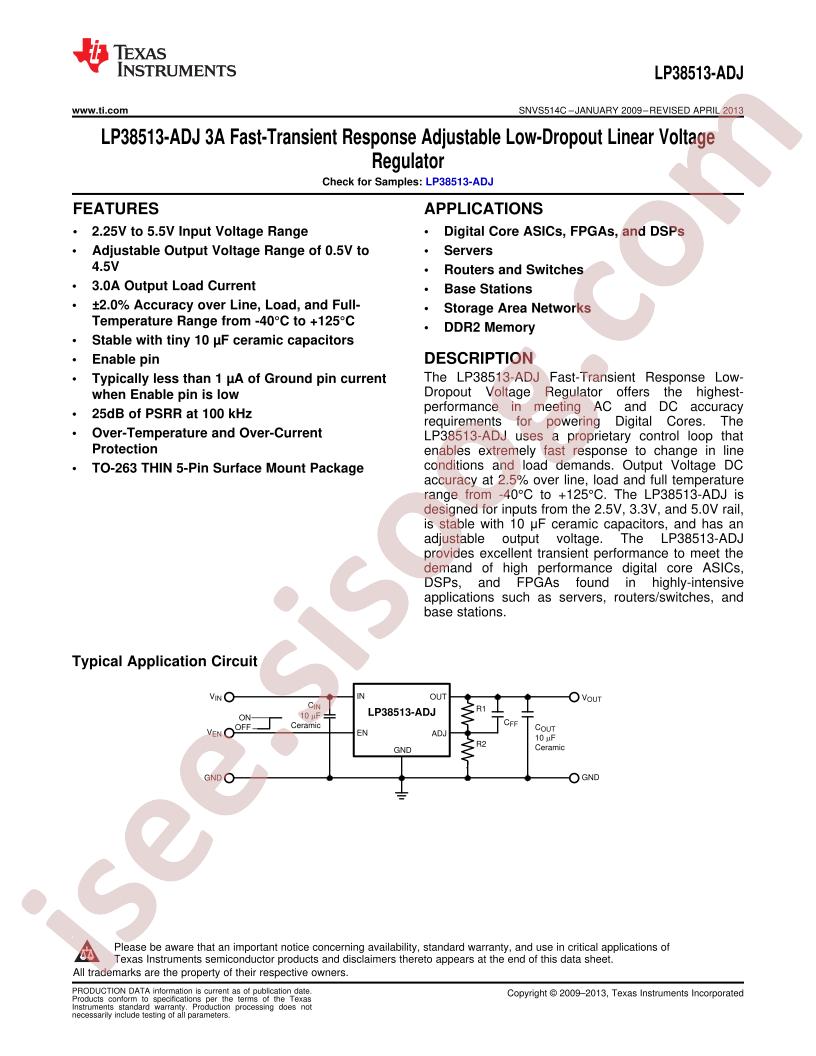

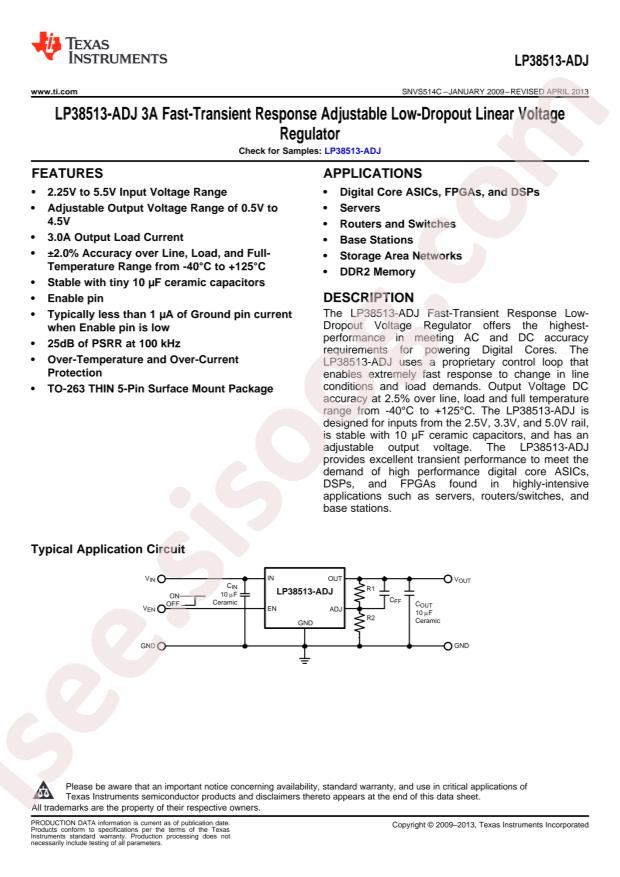

LP38513-ADJ Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP38513TJ-ADJ/NOPB
- Output Type: Adjustable
- Output Current: 3A
- Output Voltage: 0.5V~4.5V
- Dropout Voltage: 0.43V@(3A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 10mA
- Package: TO-263-5
- Manufacturer: Texas Instruments
- Voltage Dropout (Max): 0.43V @ 3A
- Package / Case: TO-263-5 Thin
- Control Features: Enable
- Current - Output: 3A
- Output Configuration: Positive
- Voltage - Output (Min/Fixed): 0.5V
- Supplier Device Package: TO-263-5 Thin
- Part Status: Active
- Current - Supply (Max): 20mA
- Base Part Number: LP38513
- PSRR: 73dB ~ 70dB (120Hz ~ 1kHz)
- Protection Features: Over Current, Over Temperature, Short Circuit
- Packaging: Cut Tape (CT)
- Voltage - Output (Max): 4.5V
- Voltage - Input (Max): 5.5V
- Series: -
- Mounting Type: Surface Mount
- Current - Quiescent (Iq): 10mA
- Number of Regulators: 1
- detail: Linear Voltage Regulator IC 1 Output 3A TO-263-5 Thin
