دیتاشیت ADC121S021CIMF/NOPB

ADC121S021

مشخصات دیتاشیت

نام دیتاشیت ADC121S021
حجم فایل 1770.718 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

دانلود دیتاشیت ADC121S021

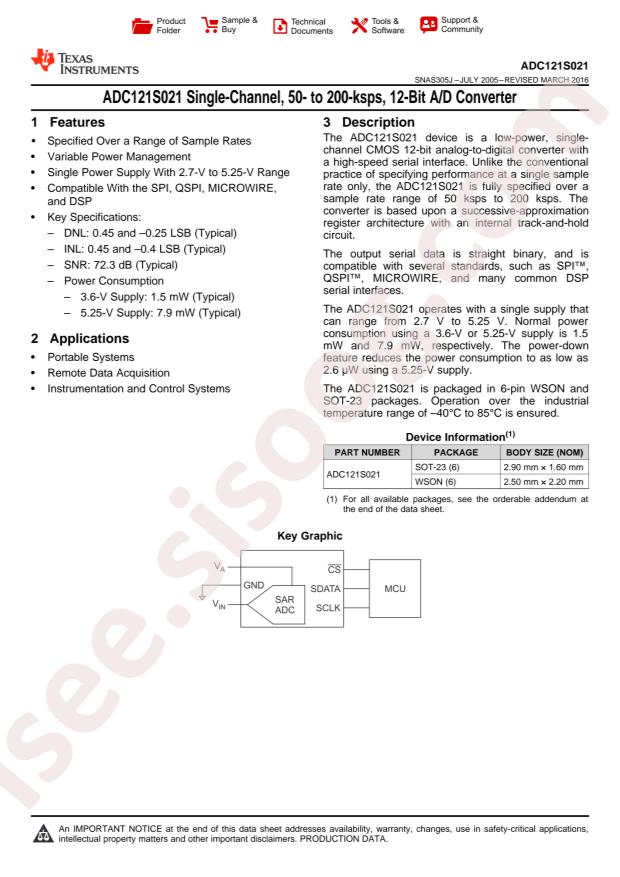

ADC121S021 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADC121S021CIMF/NOPB
  • Interface: SPI;DSP
  • resolution: 12Bit
  • Supply Voltage: 2.7V~5.25V
  • number of channels: 1
  • sampling frequency: 200kHz
  • Operating Temperature: -40°C~+85°C
  • Package: SOT-23-6
  • Manufacturer: Texas Instruments
  • Reference Type: Supply
  • Package / Case: SOT-23-6
  • Voltage - Supply, Analog: 2.7V ~ 5.25V
  • Number of A/D Converters: 1
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: SOT-23-6
  • Part Status: Active
  • Base Part Number: ADC121
  • Configuration: S/H-ADC
  • Data Interface: SPI, DSP
  • Input Type: Single Ended
  • Architecture: SAR
  • Number of Inputs: 1
  • Features: -
  • Ratio - S/H:ADC: 1:1
  • Number of Bits: 12
  • Series: -
  • Mounting Type: Surface Mount
  • Voltage - Supply, Digital: 2.7V ~ 5.25V
  • Sampling Rate (Per Second): 200k
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR SOT-23-6
