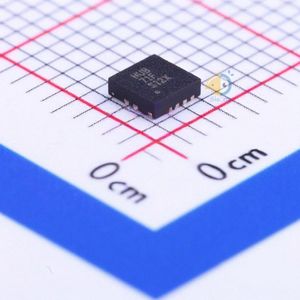

TPS63700DRCT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS63700DRCT
|
|
حجم فایل
|
89.399
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
26
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Step-down-Boost
-
Datasheet:
Texas Instruments TPS63700DRCT
-
Output Type:
Adjustable
-
Input Voltage:
2.7V~5.5V
-
Output Voltage:
-
-
Number of Outputs:
1
-
Switching Frequency:
1.38MHz
-
Output Current (Max):
360mA
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
DFN-10(3x3)
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
1.38MHz
-
Package / Case:
10-VFDFN Exposed Pad
-
Supplier Device Package:
10-VSON (3x3)
-
Voltage - Output (Min/Fixed):
-2V
-
Current - Output:
360mA
-
Output Configuration:
Negative
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
-15V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
5.5V
-
Base Part Number:
TPS637
-
Voltage - Input (Min):
2.7V
-
Synchronous Rectifier:
No
-
detail:
Buck-Boost Switching Regulator IC Negative Adjustable -2V 1 Output 360mA 10-VFDFN Exposed Pad
