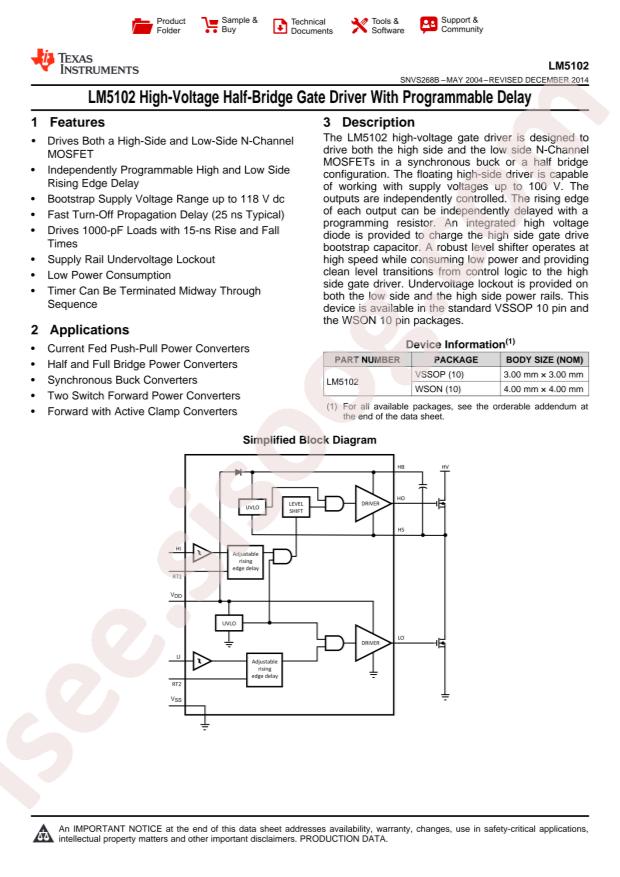

LM5102MM/NOPB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM5102MM/NOPB
|
|
حجم فایل
|
88.684
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
26
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments LM5102MM/NOPB
-
Fall Time:
600ns
-
Load Type:
MOSFET
-
Rise Time:
600ns
-
Supply Voltage:
9V~14V
-
Number of Drivers:
2
-
Driven Configuration:
Half Bridge
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Peak Output Current(sink):
1.6A
-
Peak Output Current(source):
1.6A
-
Package:
MSOP-10
-
Manufacturer:
Texas Instruments
-
Channel Type:
Independent
-
Current - Peak Output (Source, Sink):
1.6A, 1.6A
-
Base Part Number:
LM5102
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
-
Logic Voltage - VIL, VIH:
0.8V, 2.2V
-
Supplier Device Package:
10-VSSOP
-
Rise / Fall Time (Typ):
600ns, 600ns
-
Part Status:
Obsolete
-
Series:
-
-
Input Type:
Non-Inverting
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply:
9V ~ 14V
-
Gate Type:
N-Channel MOSFET
-
High Side Voltage - Max (Bootstrap):
118V
-
detail:
Half-Bridge Gate Driver IC Non-Inverting 10-VSSOP
