DRV8816PWPR دیتاشیت

DRV8816PWPR

مشخصات دیتاشیت

نام دیتاشیت DRV8816PWPR
حجم فایل 94.017 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

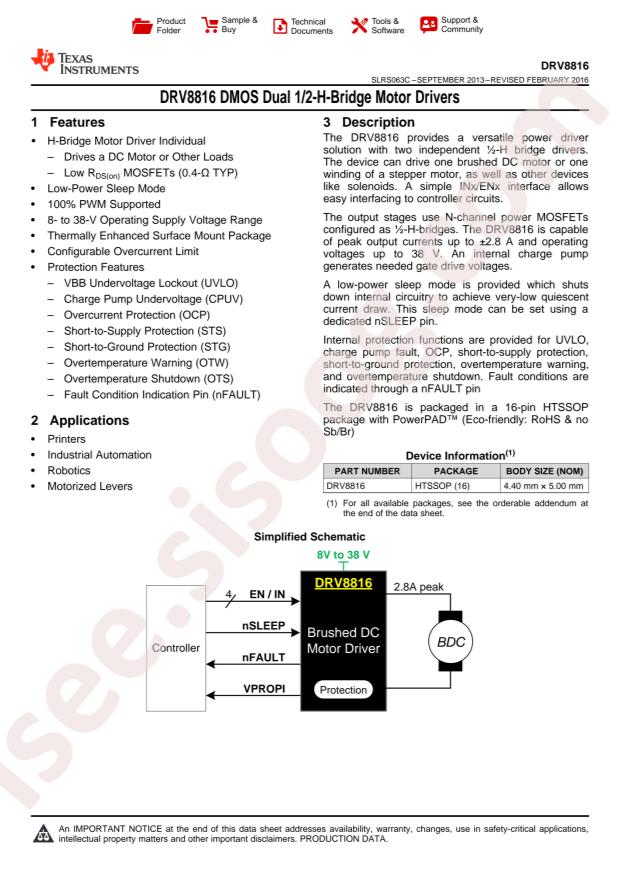

مشاهده دیتاشیت DRV8816PWPR

دانلود دیتاشیت

سایر مستندات

DRV8816 28 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8816PWPR
  • Interface: Parallel
  • Output Current: 2.8A
  • Supply Voltage: 8V~38V
  • Operating Temperature: -40°C~+190°C@(Tj)

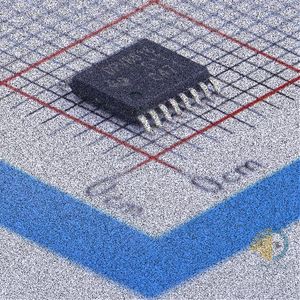

  • Package: HTSSOP-16-EP
  • Manufacturer: Texas Instruments
  • Base Part Number: DRV8816
  • Motor Type - Stepper: -
  • Package / Case: 16-PowerTSSOP (0.173", 4.40mm Width)
  • Applications: General Purpose
  • Supplier Device Package: 16-HTSSOP
  • Current - Output: 2.8A
  • Voltage - Load: 8V ~ 38V
  • Output Configuration: Half Bridge (2)
  • Packaging: Cut Tape (CT)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Step Resolution: -
  • Part Status: Active
  • Series: -
  • Mounting Type: Surface Mount
  • Motor Type - AC, DC: Brushed DC
  • Voltage - Supply: 8V ~ 38V
  • Technology: DMOS
  • detail: Motor Driver DMOS Parallel 16-HTSSOP
