TPS7A8701RTJT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS7A8701RTJT |
|---|---|
| حجم فایل | 95.558 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 46 |
دانلود دیتاشیت TPS7A8701RTJT |
دانلود دیتاشیت |
|---|
سایر مستندات
TPS7A87 Datasheet 45 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS7A8701RTJT
- Output Type: Adjustable
- Output Current: 500mA
- Output Voltage: 0.8V~5.2V
- Dropout Voltage: 100mV@(500mA)
- Output Polarity: Positive
- Number of Outputs: 2
- Maximum Input Voltage: 6.5V
- Operating Temperature: -40°C~+125°C@(Tj)
- Power Supply Rejection Ratio (PSRR): 40dB@(500kHz)

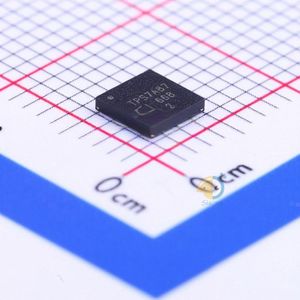

- Package: QFN-20-EP(4x4)
- Manufacturer: Texas Instruments
- Voltage - Output (Min/Fixed): 0.8V
- Voltage Dropout (Max): 0.1V @ 500mA
- Package / Case: 20-WFQFN Exposed Pad
- Control Features: Enable
- Supplier Device Package: 20-QFN (4x4)
- Base Part Number: TPS7A8
- Current - Output: 500mA
- Voltage - Output (Max): 5.2V
- Packaging: Cut Tape (CT)
- Current - Supply (Max): 4mA
- Part Status: Active
- Output Configuration: Positive
- Series: -
- Mounting Type: Surface Mount
- Voltage - Input (Max): 6.5V
- PSRR: 40dB (500kHz)
- Number of Regulators: 2
- Protection Features: -
- detail: Linear Voltage Regulator IC 2 Output 500mA 20-QFN (4x4)
