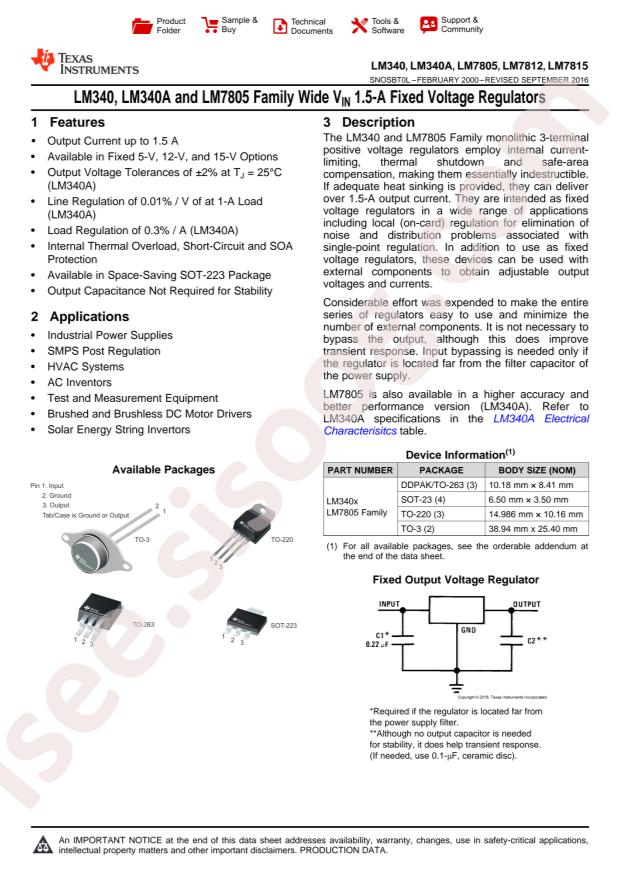

دیتاشیت LM340AT-5.0/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM340AT-5.0/NOPB |
|---|---|
| حجم فایل | 101.977 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
LM340AT-5.0/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات

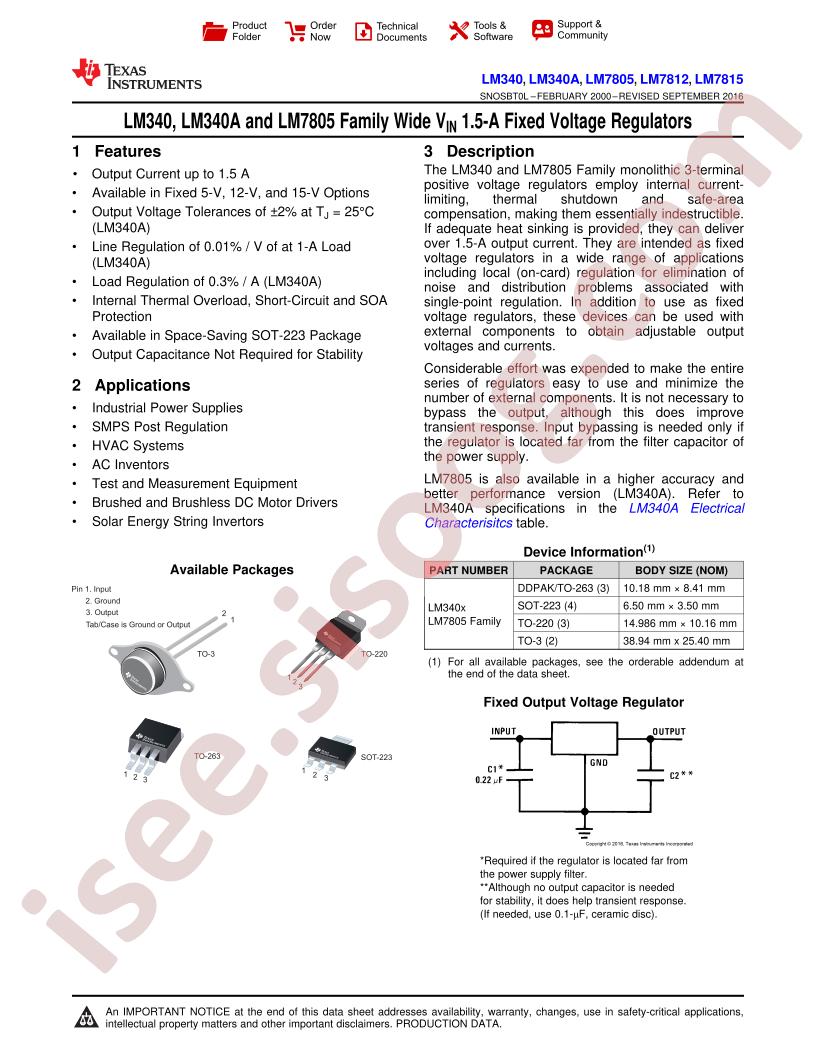

LM340(A), LM78xx Datasheet 34 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM340AT-5.0/NOPB
- Output Type: Fixed
- Output Current: 1A
- Output Voltage: 5V
- Dropout Voltage: 2V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: 0°C~+125°C
- Quiescent Current (Ground Current): 6mA
- Power Supply Rejection Ratio (PSRR): 80dB@(120Hz)
- Package: TO-220
- Manufacturer: Texas Instruments
- Base Part Number: LM340
- Supplier Device Package: TO-220-3
- Voltage - Output (Max): -
- Output Configuration: Positive
- Current - Quiescent (Iq): 6mA
- PSRR: 70dB (120Hz)
- Voltage Dropout (Max): 2V @ 1A
- Number of Regulators: 1
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Output (Min/Fixed): 5V
- Protection Features: Over Current, Short Circuit
- Series: -
- Voltage - Input (Max): 35V
- Current - Output: 1.5A
- Part Status: Not For New Designs
- Package / Case: TO-220-3
- Control Features: -
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220-3
