دیتاشیت DRV8844PWPR

DRV8844

مشخصات دیتاشیت

نام دیتاشیت DRV8844
حجم فایل 1651.315 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت DRV8844

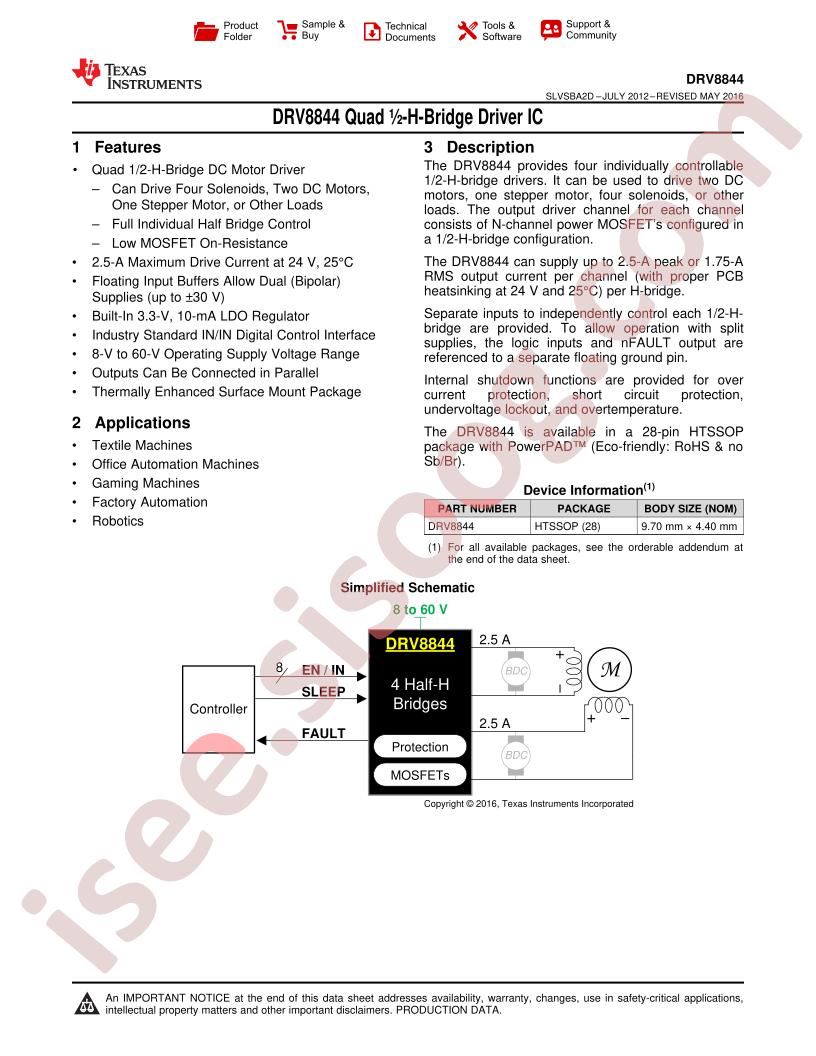

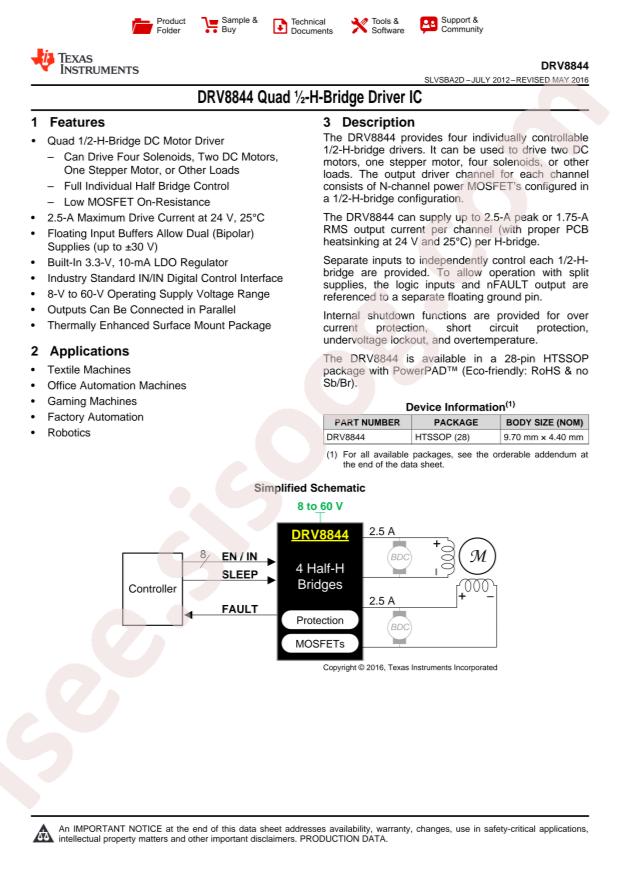

DRV8844 Datasheet

مشخصات

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8844PWPR
  • Interface: Parallel
  • Output Current: 1.75A
  • Supply Voltage: 8V~60V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: TSSOP-28-EP
  • Manufacturer: Texas Instruments
  • Base Part Number: DRV8844
  • Motor Type - Stepper: Bipolar
  • Package / Case: 28-PowerTSSOP (0.173", 4.40mm Width)
  • Applications: General Purpose
  • Supplier Device Package: 28-HTSSOP
  • Current - Output: 1.75A
  • Voltage - Load: 8V ~ 60V
  • Output Configuration: Half Bridge (4)
  • Packaging: Cut Tape (CT)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Step Resolution: -
  • Part Status: Active
  • Series: -
  • Mounting Type: Surface Mount
  • Motor Type - AC, DC: Brushed DC
  • Voltage - Supply: 8V ~ 60V
  • Technology: Power MOSFET
  • detail: Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP
