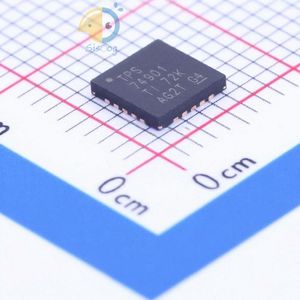

TPS74901RGWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS74901RGWR |
|---|---|
| حجم فایل | 104.288 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 37 |
دانلود دیتاشیت TPS74901RGWR |
دانلود دیتاشیت |
|---|
سایر مستندات

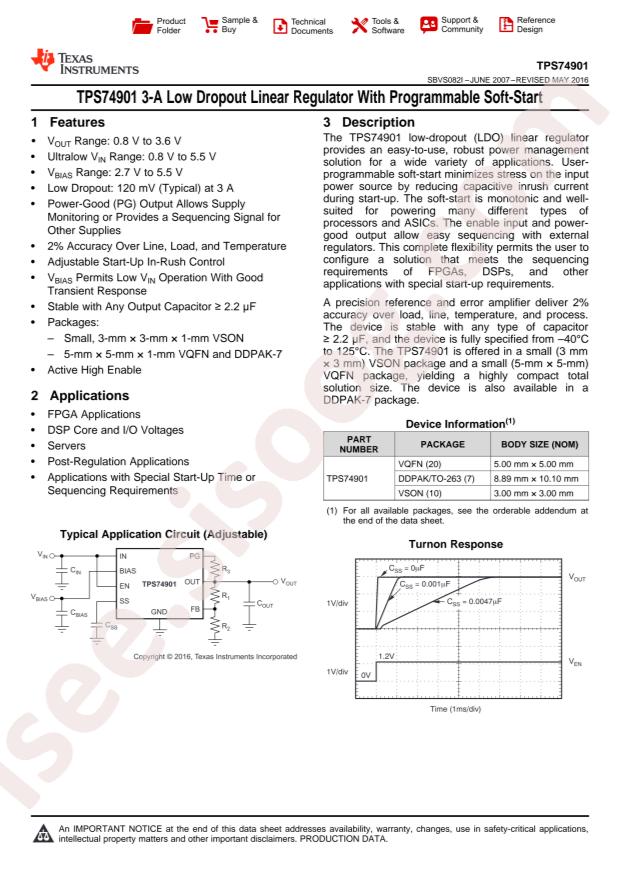

TPS749xx Datasheet 37 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS74901RGWR
- Output Type: Adjustable
- Output Current: 3A
- Output Voltage: 0.8V~3.6V
- Dropout Voltage: 280mV@(3A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Power Supply Rejection Ratio (PSRR): 60dB@(1kHz),30dB@(300kHz)
- Package: QFN-20-EP(5x5)
- Manufacturer: Texas Instruments
- Voltage - Output (Min/Fixed): 0.8V
- Voltage Dropout (Max): 0.28V @ 3A
- Package / Case: 20-VQFN Exposed Pad
- Control Features: Enable, Power Good, Soft Start
- Supplier Device Package: 20-VQFN (5x5)
- Current - Output: 3A
- Operating Temperature: -40°C ~ 125°C
- Voltage - Output (Max): 3.6V
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Part Status: Active
- Output Configuration: Positive
- Series: -
- Base Part Number: TPS749
- Voltage - Input (Max): 5.5V
- PSRR: 60dB ~ 30dB (1kHz ~ 300kHz)
- Number of Regulators: 1
- Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- detail: Linear Voltage Regulator IC 1 Output 3A 20-VQFN (5x5)
