دیتاشیت ADCS7476AIMF/NOPB

ADCS7476-78

مشخصات دیتاشیت

نام دیتاشیت ADCS7476-78
حجم فایل 1843.943 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

دانلود دیتاشیت ADCS7476-78

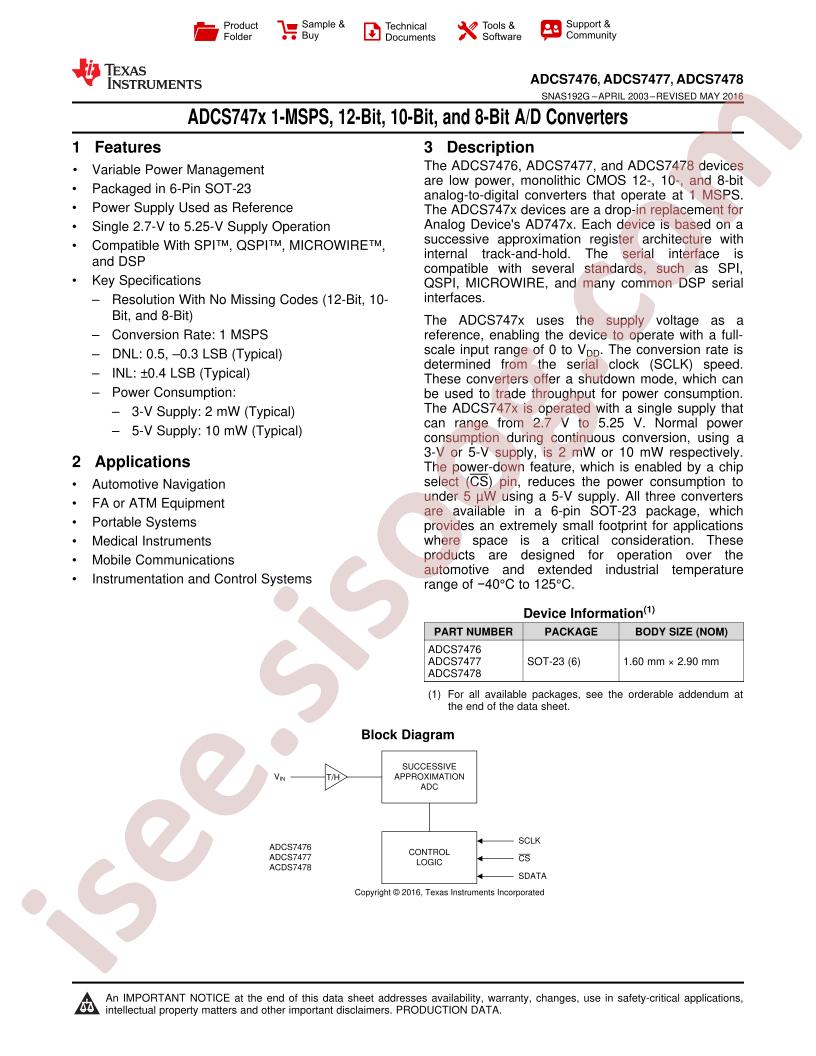

ADCS7476-78 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADCS7476AIMF/NOPB
  • Interface: SPI;DSP
  • resolution: 12Bit
  • Supply Voltage: 2.7V~5.25V
  • number of channels: 1
  • sampling frequency: 1MHz
  • Operating Temperature: -40°C~+125°C
  • Package: SOT-23-6
  • Manufacturer: Texas Instruments
  • Configuration: S/H-ADC
  • Voltage - Supply, Analog: 2.7V ~ 5.25V
  • Base Part Number: ADCS747
  • Voltage - Supply, Digital: 2.7V ~ 5.25V
  • Number of Bits: 12
  • Series: -
  • Package / Case: SOT-23-6
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: SOT-23-6
  • Number of Inputs: 1
  • Ratio - S/H:ADC: 1:1
  • Reference Type: Supply
  • Mounting Type: Surface Mount
  • Part Status: Not For New Designs
  • Sampling Rate (Per Second): 1M
  • Number of A/D Converters: 1
  • Data Interface: SPI, DSP
  • Architecture: SAR
  • Input Type: Single Ended
  • Features: -
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR SOT-23-6
