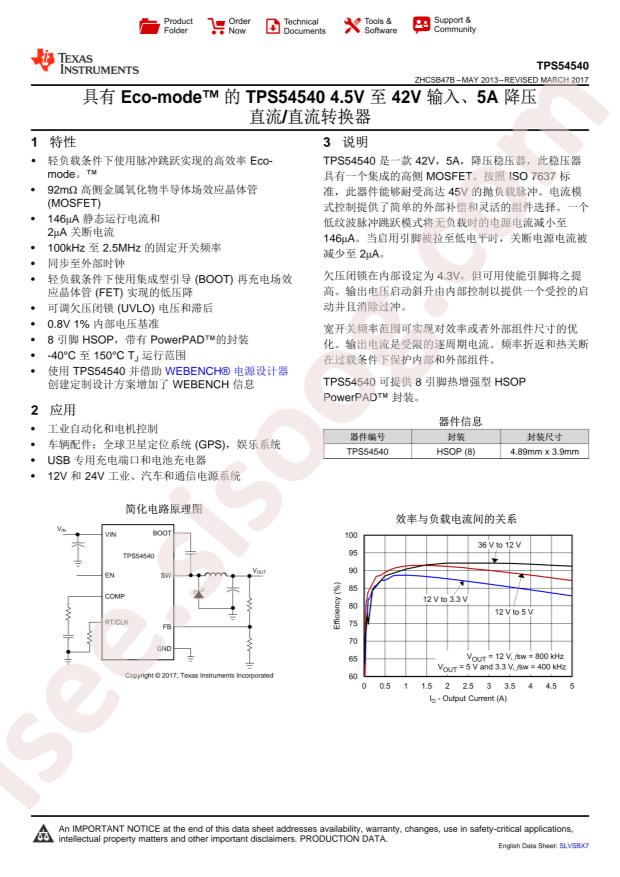

TPS54540DDAR Datasheet
Datasheet specifications
|
Datasheet's name
|
TPS54540DDAR
|
|
File size
|
87.279
KB
|
|
File type
|
pdf
|
|
Number of pages
|
47
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS54540DDAR
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~42V
-
Output Voltage:
0.8V~41.1V
-
Number of Outputs:
1
-
Switching Frequency:
2.5MHz
-
Output Current (Max):
5A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
SOP-8-EP
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
100kHz ~ 2.5MHz
-
Package / Case:
8-PowerSOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SO PowerPad
-
Voltage - Output (Min/Fixed):
0.8V
-
Current - Output:
5A
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Part Status:
Not For New Designs
-
Voltage - Output (Max):
41.1V
-
Series:
Eco-Mode™
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
42V
-
Base Part Number:
TPS545
-
Voltage - Input (Min):
4.5V
-
Synchronous Rectifier:
No
-
detail:
Buck, Split Rail Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 8-PowerSOIC (0.154", 3.90mm Width)
