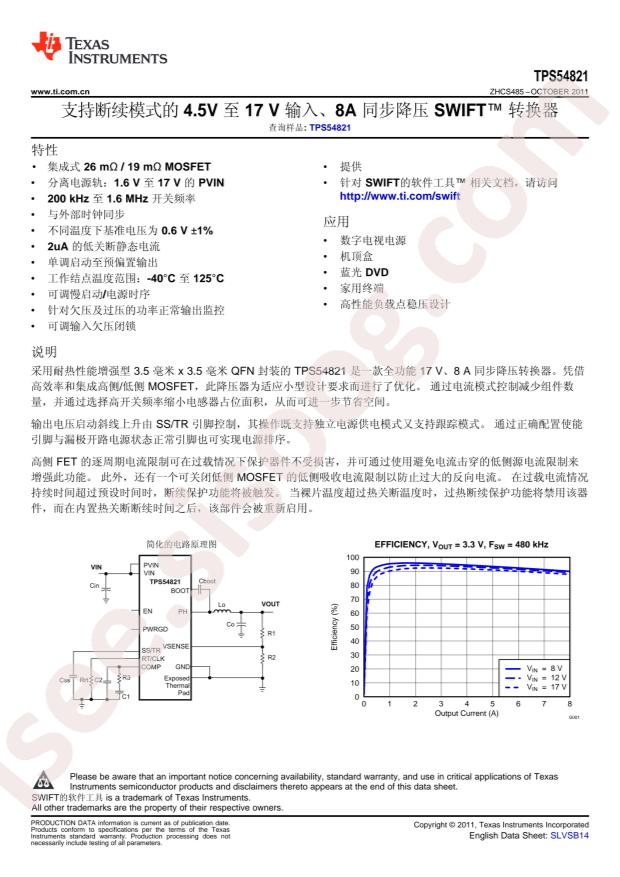

TPS54821RHLR Datasheet
Datasheet specifications
| Datasheet's name | TPS54821RHLR |
|---|---|
| File size | 85.785 KB |
| File type | |
| Number of pages | 35 |
Download Datasheet TPS54821RHLR |
Download Datasheet |
|---|
Other documentations
TPS54821 Datasheet 42 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS54821RHLR
- Output Type: Adjustable
- Input Voltage: 4.5V~17V
- Output Voltage: 0.6V~15V
- Number of Outputs: 1
- Switching Frequency: 1.6MHz
- Output Current (Max): 8A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: QFN-14-EP(3.5x3.5)
- Manufacturer: Texas Instruments
- Frequency - Switching: 200kHz ~ 1.6MHz
- Package / Case: 14-VFQFN Exposed Pad
- Supplier Device Package: 14-VQFN (3.5x3.5)
- Voltage - Output (Min/Fixed): 0.6V
- Current - Output: 8A
- Output Configuration: Positive
- Packaging: Cut Tape (CT)
- Part Status: Active
- Voltage - Output (Max): 15V
- Series: SWIFT™
- Mounting Type: Surface Mount
- Voltage - Input (Max): 17V
- Base Part Number: TPS548
- Voltage - Input (Min): 4.5V
- Synchronous Rectifier: Yes
- detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 8A 14-VFQFN Exposed Pad
