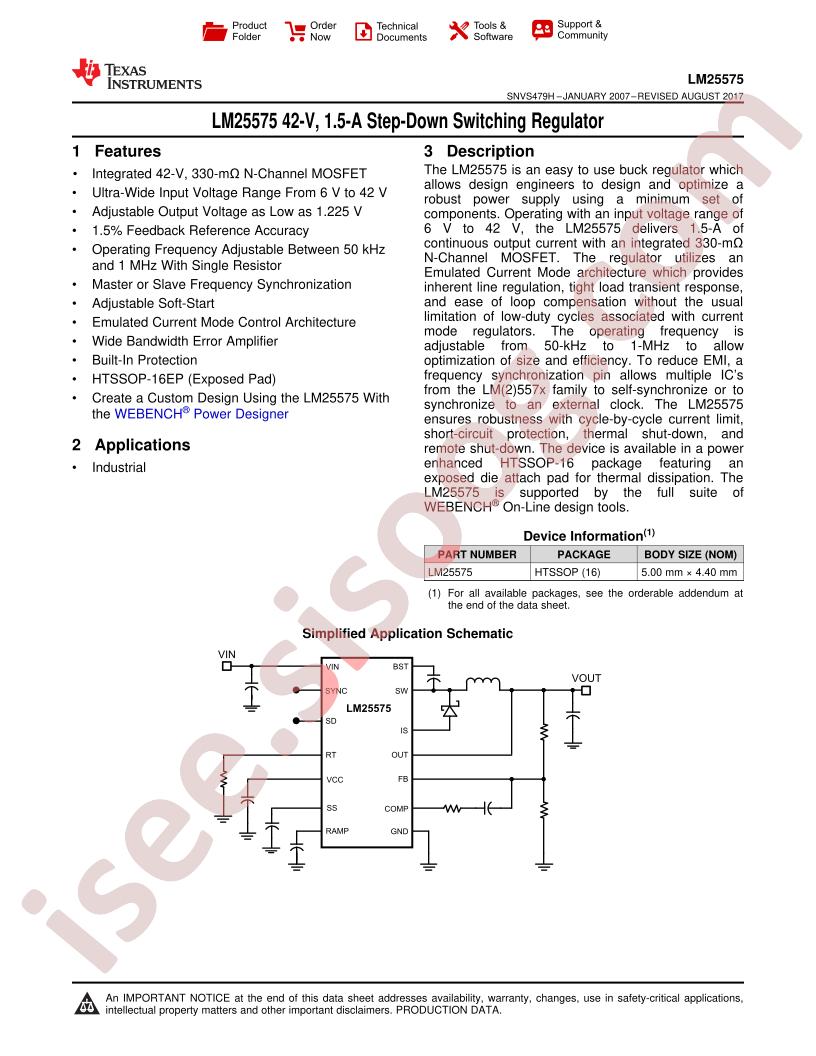

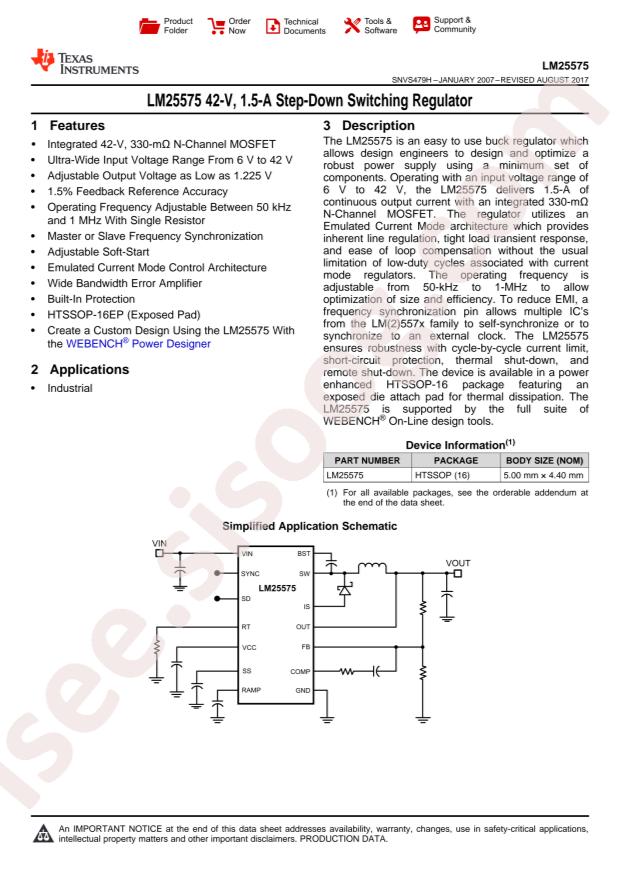

دیتاشیت LM25575MHX/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM25575/Q
|
| حجم فایل |
1159.527
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
34
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
-
-
Datasheet:
Texas Instruments LM25575MHX/NOPB
-
Input Voltage:
-
-
Number of Outputs:
-
-
Switching Frequency:
-
-
Output Current (Max):
-
-
Synchronous Rectification:
-
-
Package:
HTSSOP-16-EP
-
Manufacturer:
Texas Instruments
-
Package / Case:
16-PowerTSSOP (0.173", 4.40mm Width)
-
Output Configuration:
Positive
-
Base Part Number:
LM2557
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Frequency - Switching:
50kHz ~ 1MHz
-
Supplier Device Package:
16-HTSSOP
-
Part Status:
Obsolete
-
Current - Output:
1.5A
-
Series:
SIMPLE SWITCHER®
-
Voltage - Input (Max):
42V
-
Synchronous Rectifier:
No
-
Voltage - Output (Min/Fixed):
1.225V
-
Voltage - Input (Min):
6V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
40V
-
Output Type:
Adjustable
-
detail:
Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 1.5A 16-PowerTSSOP (0.173", 4.40mm Width)
