دیتاشیت REF02AU/2K5

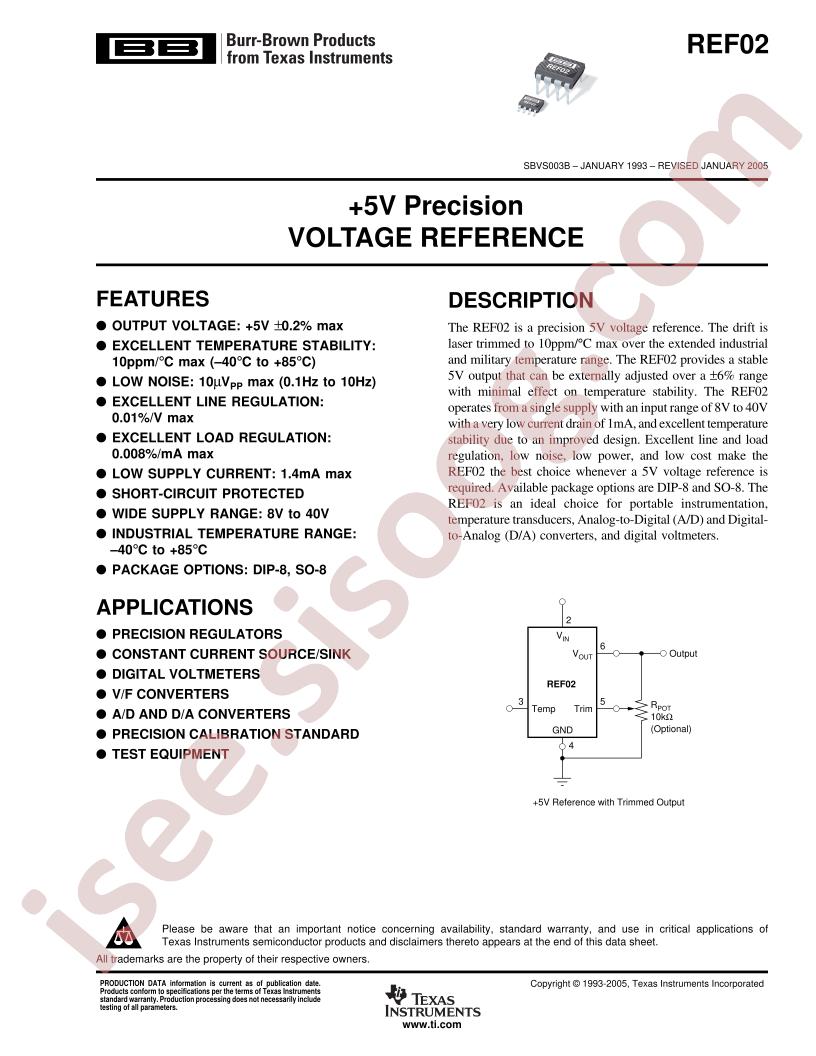

REF02 Datasheet

مشخصات دیتاشیت

نام دیتاشیت REF02 Datasheet
حجم فایل 1027.463 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت REF02 Datasheet

REF02 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: Texas Instruments REF02AU/2K5
  • Tolerance: ±0.3%
  • Output Type: Fixed
  • Input Voltage: 8V~40V
  • Output Current: 21mA
  • Output Voltage: 5V
  • Reference Type: series connection
  • Supply Current: 1.4mA
  • Noise - 10Hz to 10kHz: -
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Noise - 1/10Hz to 10Hz: 4uVp-p
  • Temperature Coefficient: 15ppm/°C
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Voltage - Output (Min/Fixed): 5V
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Current - Supply: 1.4mA
  • Noise - 0.1Hz to 10Hz: 4µVp-p
  • Current - Output: 21mA
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: 8-SOIC
  • Part Status: Active
  • Base Part Number: REF02
  • Series: -
  • Mounting Type: Surface Mount
  • Voltage - Input: 8V ~ 40V
  • detail: Series Voltage Reference IC ±0.3% 8-SOIC
