دیتاشیت DRV8821DCAR

DRV8821

مشخصات دیتاشیت

نام دیتاشیت DRV8821
حجم فایل 4244.604 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت DRV8821

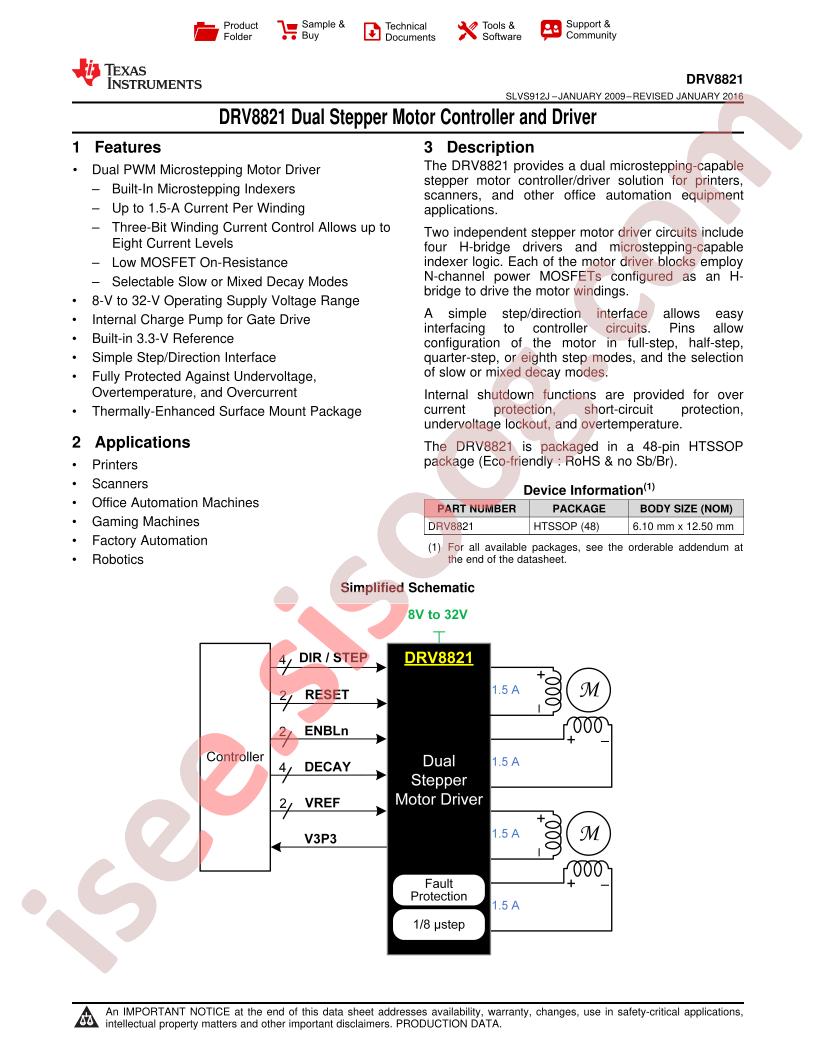

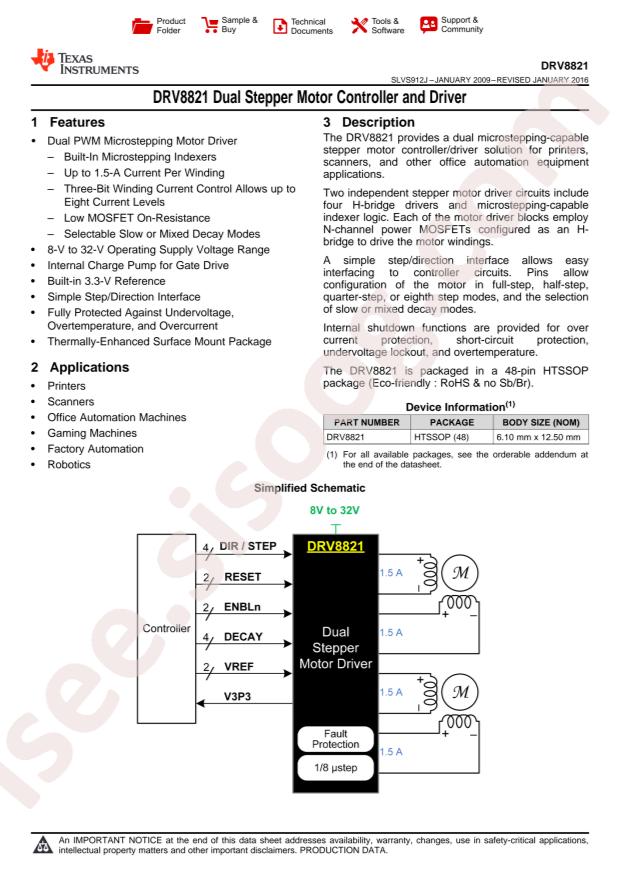

DRV8821 Datasheet

مشخصات

  • RoHS: true
  • Type: -
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8821DCAR
  • Interface: -
  • Output Current: 1.5A
  • Supply Voltage: 8V~32V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: HTSSOP-48-EP-6.1mm
  • Manufacturer: Texas Instruments
  • Base Part Number: DRV8821
  • Motor Type - Stepper: Bipolar
  • Package / Case: 48-PowerTFSOP (0.240", 6.10mm Width)
  • Applications: General Purpose
  • Supplier Device Package: 48-HTSSOP
  • Current - Output: 1.5A
  • Voltage - Load: 8V ~ 32V
  • Output Configuration: Half Bridge (8)
  • Packaging: Cut Tape (CT)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Step Resolution: 1, 1/2, 1/4, 1/8
  • Part Status: Active
  • Series: -
  • Mounting Type: Surface Mount
  • Motor Type - AC, DC: -
  • Voltage - Supply: 8V ~ 32V
  • Technology: Power MOSFET
  • detail: Bipolar Motor Driver Power MOSFET Logic 48-HTSSOP
