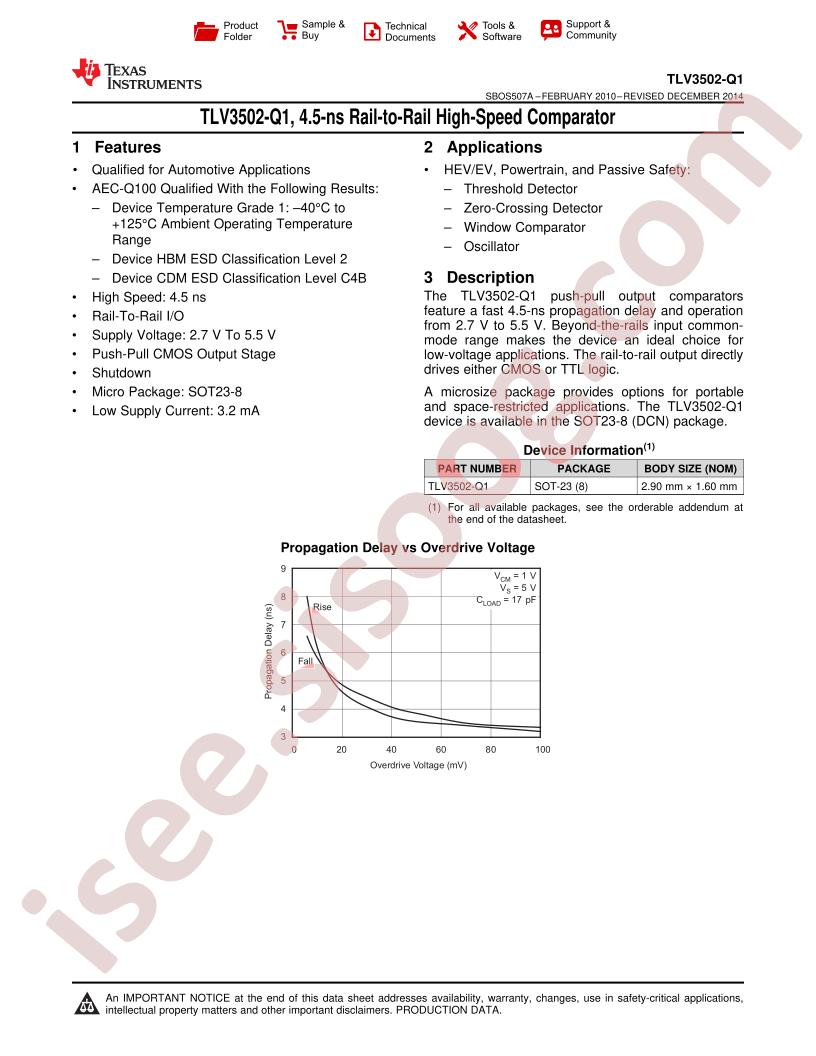

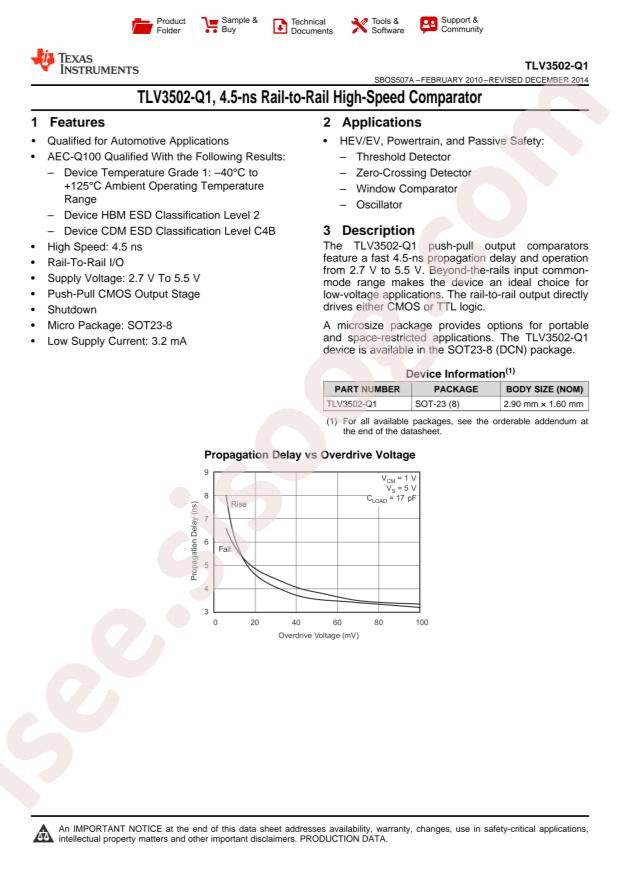

دیتاشیت TLV3502AQDCNRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
TLV3502-Q1
|
| حجم فایل |
1054.386
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Texas Instruments TLV3502AQDCNRQ1
-
Output Type:
开集
-
Supply Voltage:
2.7V~5.5V;1.35V~2.75V
-
Number of Elements:
-
-
Operating Temperature:
-40°C~+125°C
-
Input Bias Current (Ib):
10pA
-
Input Offset Voltage (Vos):
6.5mV
-
Input Hysteresis Voltage (Vhys):
6mV
-
Common Mode Rejection Ratio (CMRR):
-
-
Package:
SOT-23-8
-
Manufacturer:
Texas Instruments
-
CMRR, PSRR (Typ):
70dB CMRR, 80dB PSRR
-
Package / Case:
SOT-23-8
-
Hysteresis:
6mV
-
Type:
General Purpose
-
Voltage - Supply, Single/Dual (±):
2.7V ~ 5.5V, ±1.35V ~ 2.75V
-
Packaging:
Digi-Reel®
-
Supplier Device Package:
SOT-23-8
-
Current - Input Bias (Max):
10pA @ 5.5V
-
Part Status:
Active
-
Base Part Number:
TLV350
-
Series:
Automotive, AEC-Q100
-
Voltage - Input Offset (Max):
6.5mV @ 5.5V
-
Mounting Type:
Surface Mount
-
Current - Output (Typ):
-
-
Current - Quiescent (Max):
5mA
-
Propagation Delay (Max):
10ns
-
detail:
Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail, TTL SOT-23-8
