TPS43000PWR دیتاشیت

TPS43000PWR

مشخصات دیتاشیت

نام دیتاشیت TPS43000PWR
حجم فایل 101.514 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

مشاهده دیتاشیت TPS43000PWR

دانلود دیتاشیت

سایر مستندات

TPS43000 33 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Function: boost converterType;Step-down type;Buck-boost type
  • Topology: Step-down;Boost;Step-down-Boost;Flyback;SEPIC
  • Datasheet: Texas Instruments TPS43000PWR
  • Input Voltage: 1.8V~9V
  • Duty Cycle (Max): 90%;100%
  • Number of Outputs: 1
  • Switching Frequency: 1MHz
  • Operating Temperature: -40°C~+85°C@(TA)
  • Synchronous Rectification: Yes

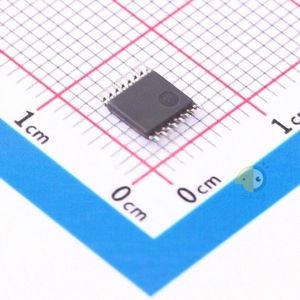

  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Control Features: Current Limit, Enable, Frequency Control
  • Output Configuration: Positive
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: 16-TSSOP
  • Part Status: Active
  • Base Part Number: TPS430
  • Output Type: Transistor Driver
  • Output Phases: 1
  • Synchronous Rectifier: Yes
  • Voltage - Supply (Vcc/Vdd): 1.8V ~ 9V
  • Frequency - Switching: 250kHz ~ 1MHz
  • Series: -
  • Mounting Type: Surface Mount
  • Clock Sync: Yes
  • Serial Interfaces: -
  • detail: Buck, Boost, Buck-Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
