- LM2575T-5.0/NOPB

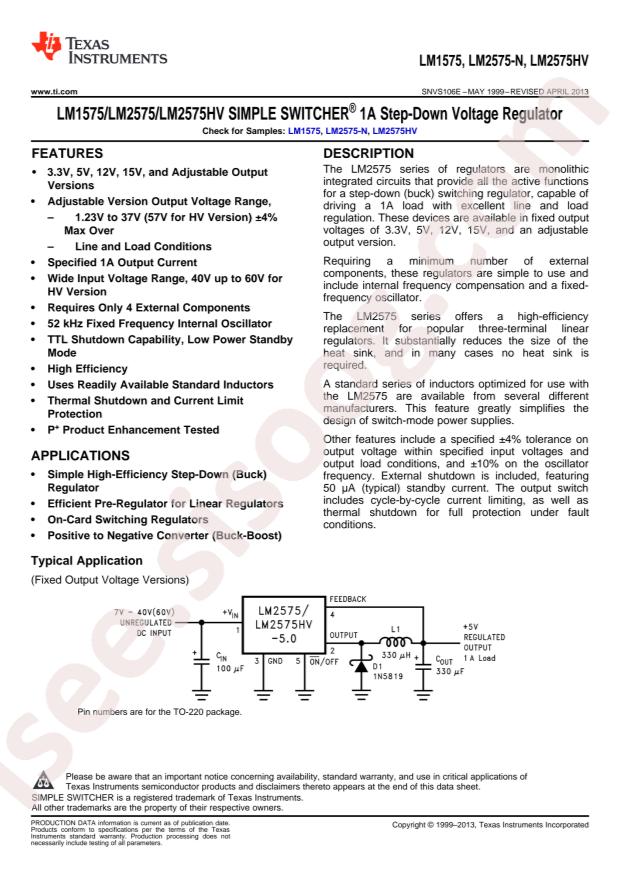

LM2575T-5.0/NOPB Datasheet
Datasheet specifications
| Datasheet's name | LM2575T-5.0/NOPB |
|---|---|
| File size | 107.529 KB |
| File type | |
| Number of pages | 43 |
Download Datasheet LM2575T-5.0/NOPB |
Download Datasheet |
|---|
Other documentations
LM1575,2575(HV) 44 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments LM2575T-5.0/NOPB
- Output Type: Fixed
- Input Voltage: 4V~40V
- Output Voltage: 5V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TO-220-5
- Manufacturer: Texas Instruments
- Frequency - Switching: 52kHz
- Package / Case: TO-220-5
- Supplier Device Package: TO-220-5
- Voltage - Output (Min/Fixed): 5V
- Current - Output: 1A
- Output Configuration: Positive
- Packaging: Tube
- Part Status: Active
- Voltage - Output (Max): -
- Series: SIMPLE SWITCHER®
- Mounting Type: Through Hole
- Voltage - Input (Max): 40V
- Base Part Number: LM2575
- Voltage - Input (Min): 4V
- Synchronous Rectifier: No
- detail: Buck Switching Regulator IC Positive Fixed 5V 1 Output 1A TO-220-5
