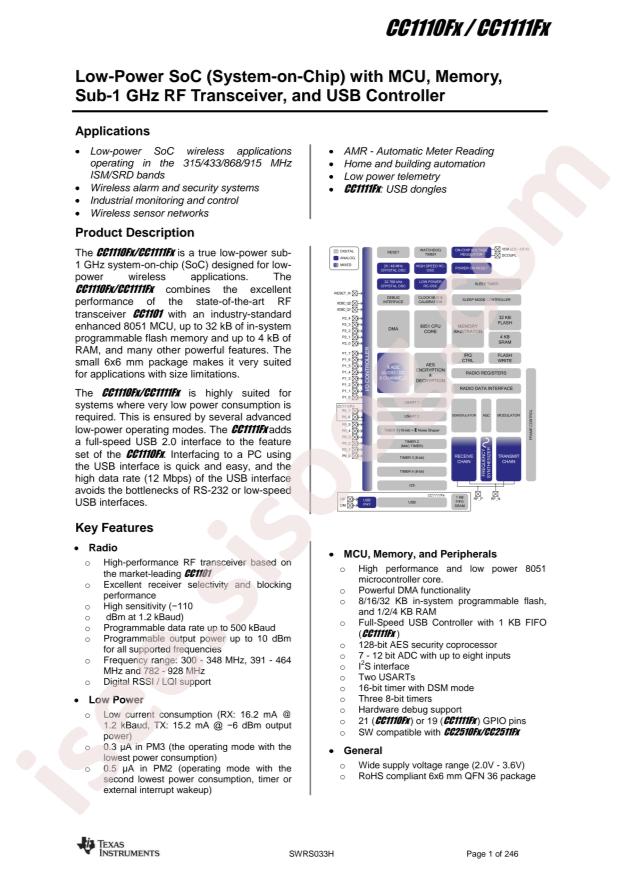

CC1110F32RHHR دیتاشیت

CC1110F32RHHR

مشخصات دیتاشیت

نام دیتاشیت CC1110F32RHHR
حجم فایل 98.987 کیلوبایت
نوع فایل pdf
تعداد صفحات 249

دانلود دیتاشیت CC1110F32RHHR

دانلود دیتاشیت

سایر مستندات

CC1110Fx/CC1111Fx 249 pages

مشخصات فنی

  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
  • Datasheet: Texas Instruments CC1110F32RHHR
  • Package: QFN-36-EP(6x6)
  • Manufacturer: Texas Instruments
  • Package / Case: 36-VFQFN Exposed Pad
  • Data Rate (Max): 500kBaud
  • Type: TxRx + MCU
  • Operating Temperature: -40°C ~ 85°C
  • Modulation: 2FSK, ASK, GFSK, MSK, OOK
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: 36-VQFN (6x6)
  • Part Status: Active
  • Power - Output: 10dBm
  • Sensitivity: -112dBm
  • Memory Size: 32kB Flash, 4kB SRAM
  • Base Part Number: CC1110F
  • Current - Transmitting: 18mA ~ 36.2mA
  • RF Family/Standard: General ISM < 1GHz
  • GPIO: 21
  • Current - Receiving: 16.2mA ~ 21.5mA
  • Voltage - Supply: 2V ~ 3.6V
  • Frequency: 300MHz ~ 348MHz, 391MHz ~ 464MHz, 782MHz ~ 928MHz
  • Protocol: -
  • Series: -
  • Mounting Type: Surface Mount
  • Serial Interfaces: I²S, USART
  • detail: IC RF TxRx + MCU General ISM < 1GHz 300MHz ~ 348MHz, 391MHz ~ 464MHz, 782MHz ~ 928MHz 36-VFQFN Exposed Pad
