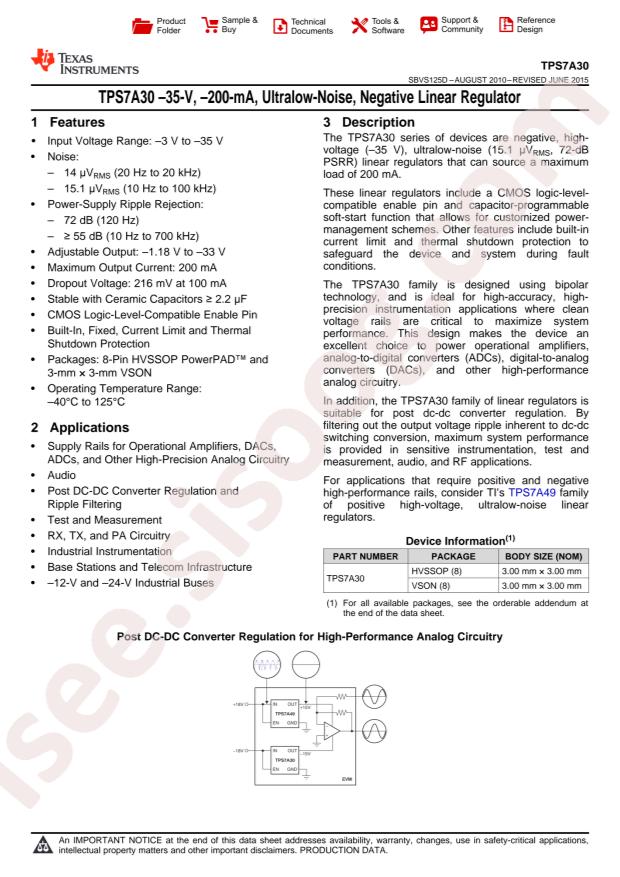

TPS7A3001DRBT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS7A3001DRBT
|
|
حجم فایل
|
106.267
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
42
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A3001DRBT
-
Output Type:
Adjustable
-
Output Current:
200mA
-
Output Voltage:
1.18V~33V
-
Dropout Voltage:
0.6V@(200mA)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
35V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
100uA
-
Power Supply Rejection Ratio (PSRR):
72dB@(120Hz)
-
Package:
SON-8
-
Manufacturer:
Texas Instruments
-
Voltage Dropout (Max):
0.6V @ 200mA
-
Package / Case:
8-VDFN Exposed Pad
-
Control Features:
Enable, Soft Start
-
Current - Output:
200mA
-
Output Configuration:
Negative
-
Voltage - Output (Min/Fixed):
-1.18V
-
Supplier Device Package:
8-SON (3x3)
-
Part Status:
Active
-
Current - Supply (Max):
950µA
-
Base Part Number:
TPS7A3
-
PSRR:
72dB (120Hz)
-
Protection Features:
Over Current, Over Temperature
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Max):
-33V
-
Voltage - Input (Max):
-35V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Current - Quiescent (Iq):
100µA
-
Number of Regulators:
1
-
detail:
Linear Voltage Regulator IC 1 Output 200mA 8-SON (3x3)
