TLC5947RHBT دیتاشیت

مشخصات دیتاشیت

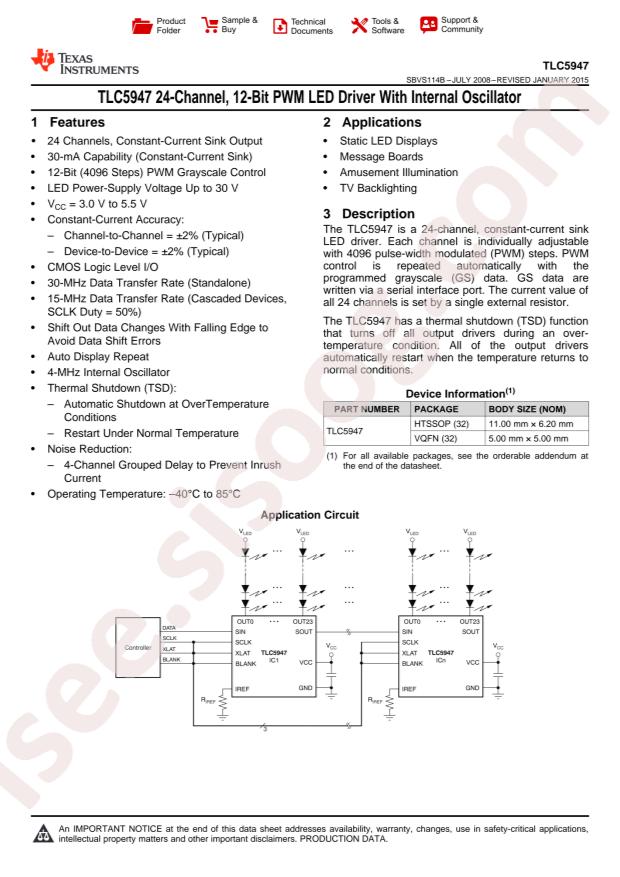

مشاهده دیتاشیت TLC5947RHBT	دانلود دیتاشیت

RoHS: true
Category: Nixie Tube Driver/LED Driver/LED Drivers
Datasheet: Texas Instruments TLC5947RHBT

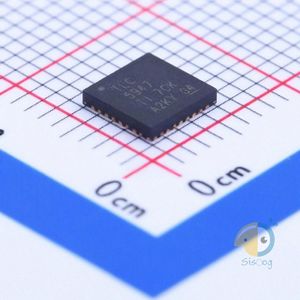

Package: QFN-32-EP(5x5)
Manufacturer: Texas Instruments
Topology: Shift Register
Voltage - Supply (Max): 5.5V
Number of Outputs: 24
Package / Case: 32-VFQFN Exposed Pad
Applications: Backlight
Voltage - Output: 30V
Type: Linear
Operating Temperature: -40°C ~ 85°C (TA)
Frequency: 4MHz
Packaging: Cut Tape (CT)
Voltage - Supply (Min): 3V
Part Status: Active
Base Part Number: TLC594
Series: -
Dimming: -
Mounting Type: Surface Mount
Internal Switch(s): Yes
Current - Output / Channel: 30mA
Supplier Device Package: 32-VQFN (5x5)
detail: LED Driver IC 24 Output Linear Shift Register Dimming 30mA 32-VQFN (5x5)
