دیتاشیت ISO7740FDWR

مشخصات دیتاشیت

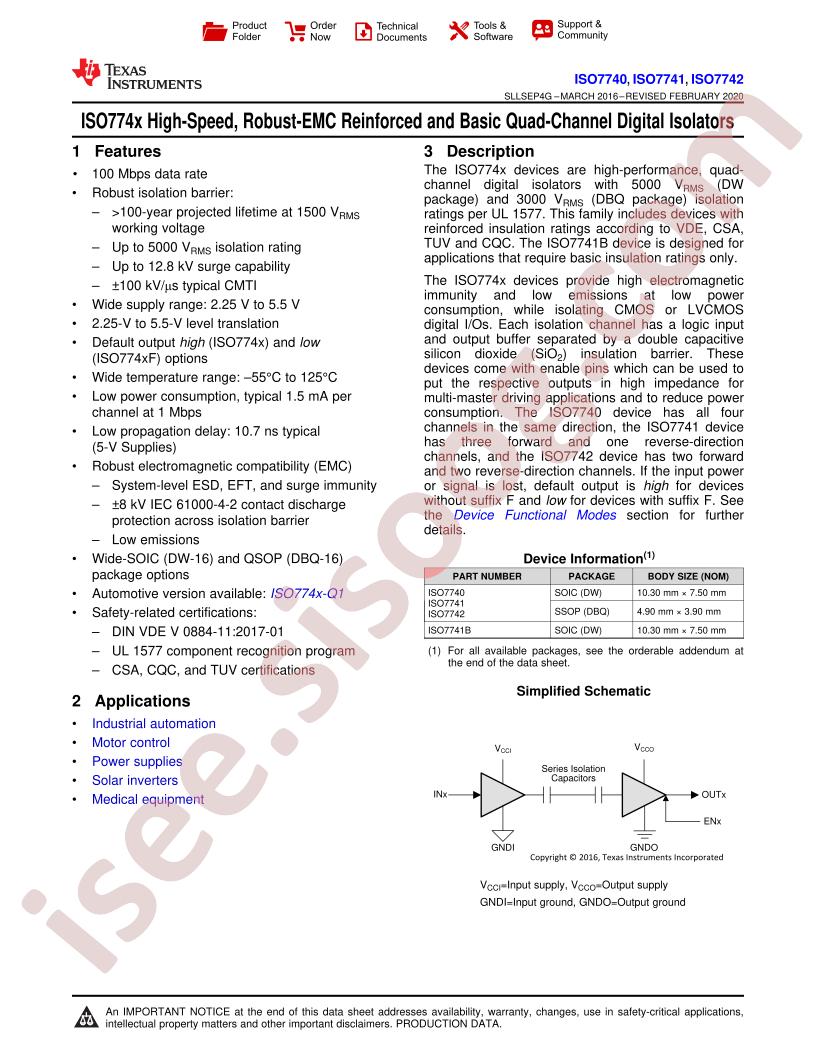

دانلود دیتاشیت ISO7740 - ISO7742 Datasheet	ISO7740 - ISO7742 Datasheet Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 100Mbps
Datasheet: Texas Instruments ISO7740FDWR
Applications: General-purpose
Supply Voltage: 2.25V~5.5V
Forward Channel: 4
Reverse channel: 0
Number of Channels: 4
Isolation Technology: 电容隔离
Operating Temperature: -55°C~+125°C
Voltage Isolation or Not: Without voltage isolation
Package: SOP-16-300mil
Manufacturer: Texas Instruments
Inputs - Side 1/Side 2: 4/0
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ): 2.4ns, 2.4ns
Type: General Purpose
Packaging: Cut Tape (CT)
Supplier Device Package: 16-SOIC
Part Status: Active
Common Mode Transient Immunity (Min): 85kV/µs
Base Part Number: ISO774
Pulse Width Distortion (Max): 4.9ns
Isolated Power: No
Channel Type: Unidirectional
Voltage - Supply: 2.25V ~ 5.5V
Series: -
Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
Mounting Type: Surface Mount
Voltage - Isolation: 5000Vrms
Technology: Capacitive Coupling
detail: General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 85kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
