دیتاشیت LM1084IT-ADJ/NOPB

LM1084

مشخصات دیتاشیت

نام دیتاشیت LM1084
حجم فایل 2295.325 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

دانلود دیتاشیت LM1084

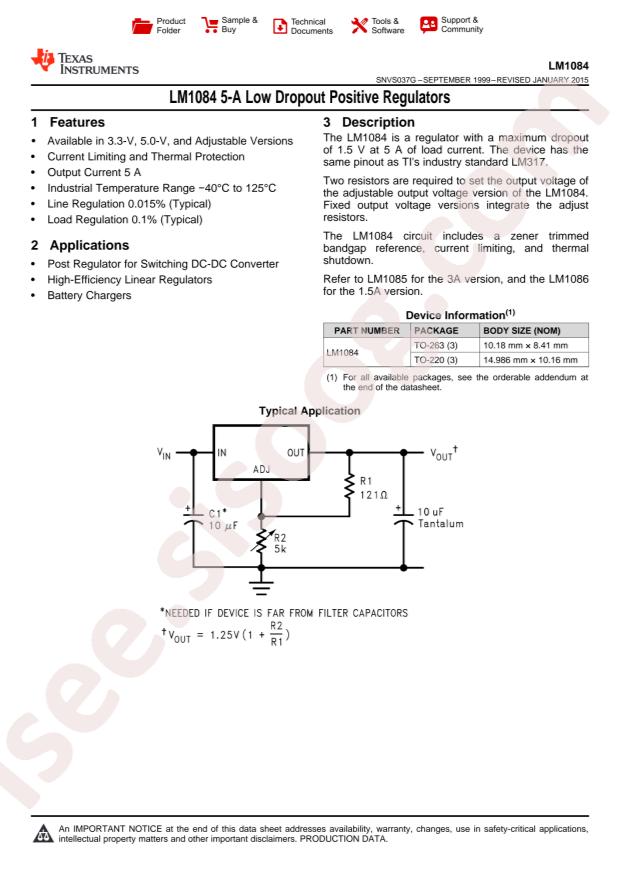

LM1084 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LM1084IT-ADJ/NOPB
  • Output Type: Adjustable
  • Output Current: 5A
  • Output Voltage: 1.25V~27.5V
  • Dropout Voltage: 1.5V@(5A)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 29V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 10mA
  • Power Supply Rejection Ratio (PSRR): 75dB@(120Hz)
  • Package: TO-220
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Current - Output: 5A
  • Series: -
  • Package / Case: TO-220-3
  • Voltage - Output (Min/Fixed): 1.25V
  • Control Features: -
  • Number of Regulators: 1
  • Mounting Type: Through Hole
  • Voltage - Output (Max): 27.5V
  • Base Part Number: LM1084
  • Protection Features: Over Current, Over Temperature
  • PSRR: 75dB (120Hz)
  • Voltage Dropout (Max): 1.5V @ 5A
  • Packaging: Tube
  • Output Configuration: Positive
  • Supplier Device Package: TO-220-3
  • Voltage - Input (Max): 29V
  • Current - Quiescent (Iq): 10mA
  • detail: Linear Voltage Regulator IC 1 Output 5A TO-220-3
