STP03D200 دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت STP03D200	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Darlington Transistors

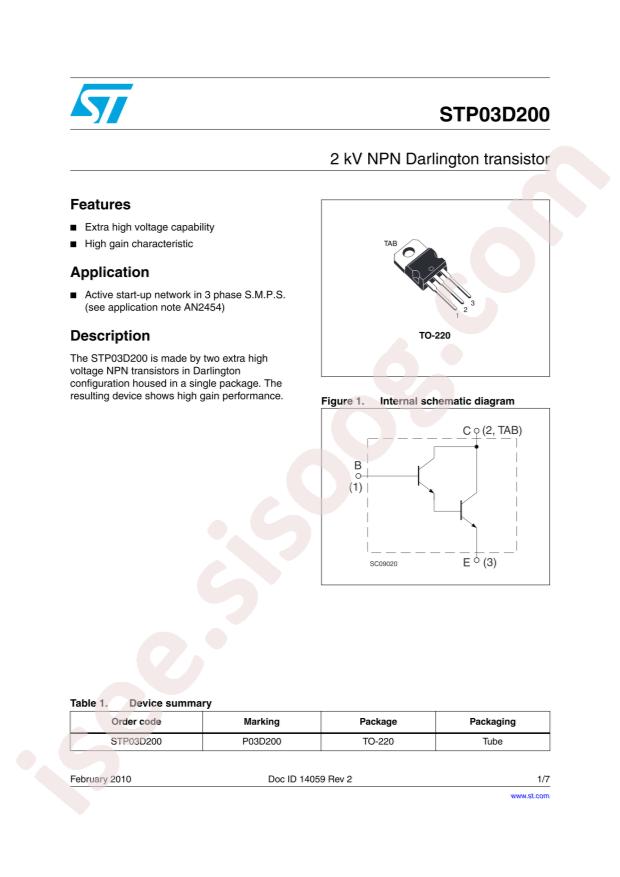

Datasheet: STMicroelectronics STP03D200
Transistor Type: NPN
Operating Temperature: +150°C@(Tj)
Collector Current (Ic): 100mA
Power Dissipation (Pd): 40W
Transition frequency (fT): -
DC current gain (hFE@Vce,Ic): 200@10V,30mA
Collector-emitter voltage (Vceo): 1200V
Collector cut-off current (Icbo@Vcb): 100uA
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib): 2V@50mA,500uA

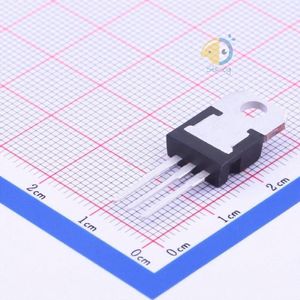

Package: TO-220-3
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Current - Collector (Ic) (Max): 100mA
Voltage - Collector Emitter Breakdown (Max): 1200V
Vce Saturation (Max) @ Ib, Ic: 2V @ 500µA, 50mA
Current - Collector Cutoff (Max): 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 30mA, 10V
Power - Max: 40W
Frequency - Transition: -
Mounting Type: Through Hole
Package / Case: TO-220-3
Supplier Device Package: TO-220AB
Base Part Number: STP03D
detail: Bipolar (BJT) Transistor NPN - Darlington 1200V 100mA 40W Through Hole TO-220AB
