دیتاشیت ESDALC20-1BF4

ESDALC20-1BF4 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ESDALC20-1BF4 Datasheet
حجم فایل 236.217 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

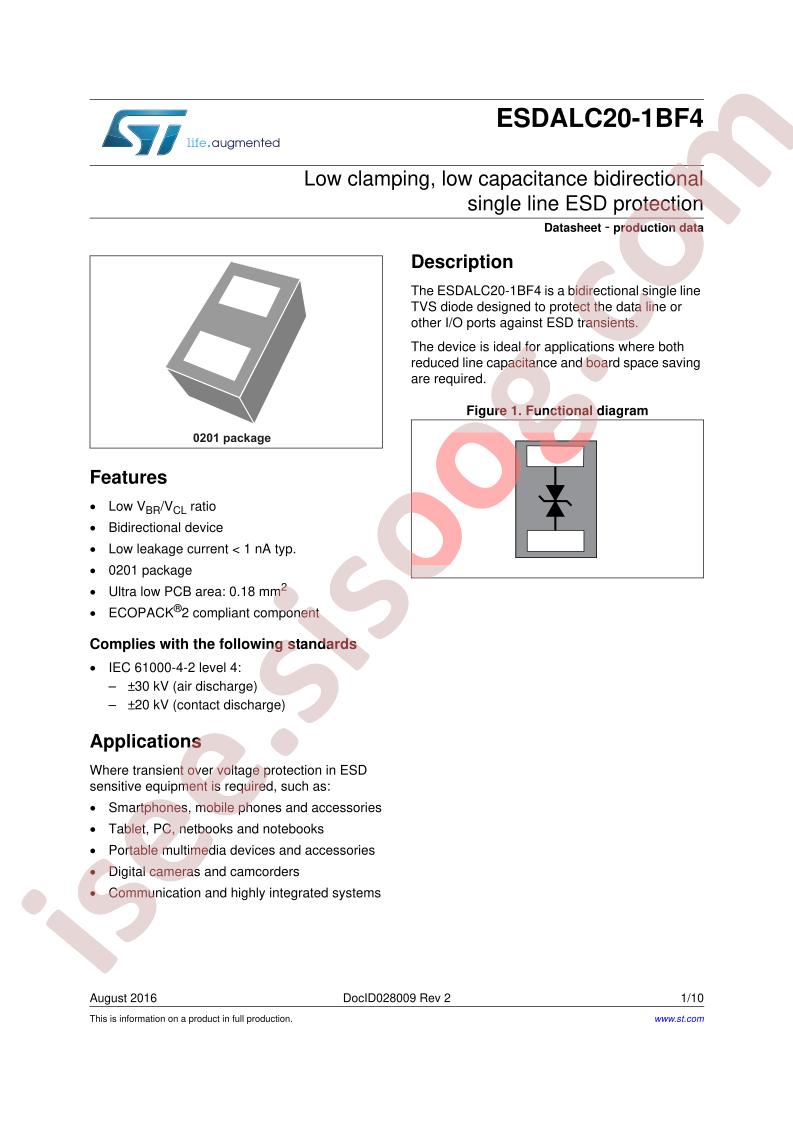

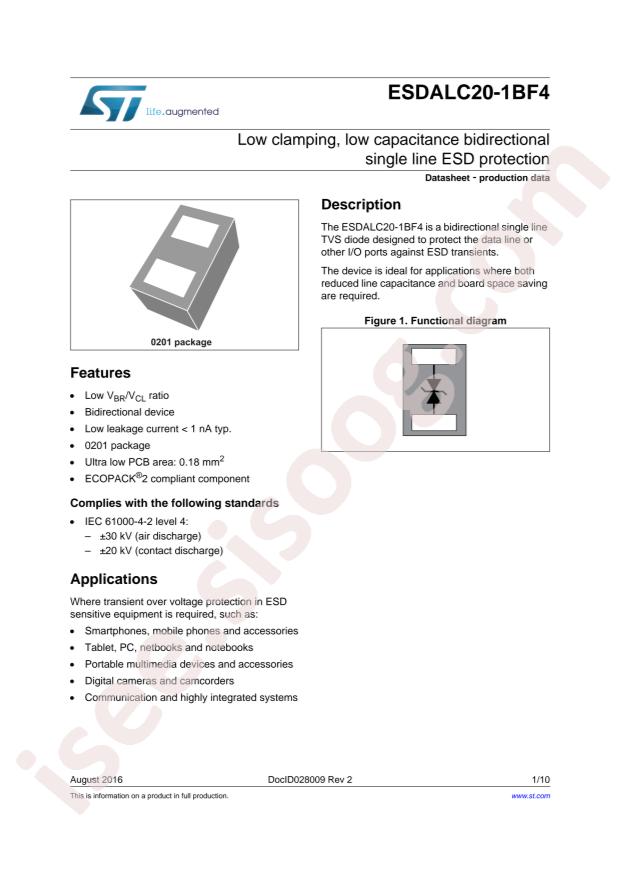

دانلود دیتاشیت ESDALC20-1BF4 Datasheet

ESDALC20-1BF4 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDALC20-1BF4
  • Clamping Voltage@Ipp: 22V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 22V
  • Peak Pulse Power(Ppp)@8/20us: 90W
  • Junction Capacitance(Cj)@1MHz: 10.5pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: 2.4A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 20V
  • Package: 0201
  • Manufacturer: STMicroelectronics
  • Series: ESDA
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 20V
  • Voltage - Breakdown (Min): 22V
  • Voltage - Clamping (Max) @ Ipp: 37V
  • Current - Peak Pulse (10/1000µs): 2.4A (8/20µs)
  • Power - Peak Pulse: 90W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 10.5pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: 0201 (0603 Metric)
  • Supplier Device Package: 0201
  • Base Part Number: ESDALC20
  • detail: 37V Clamp 2.4A (8/20µs) Ipp Tvs Diode Surface Mount 0201
