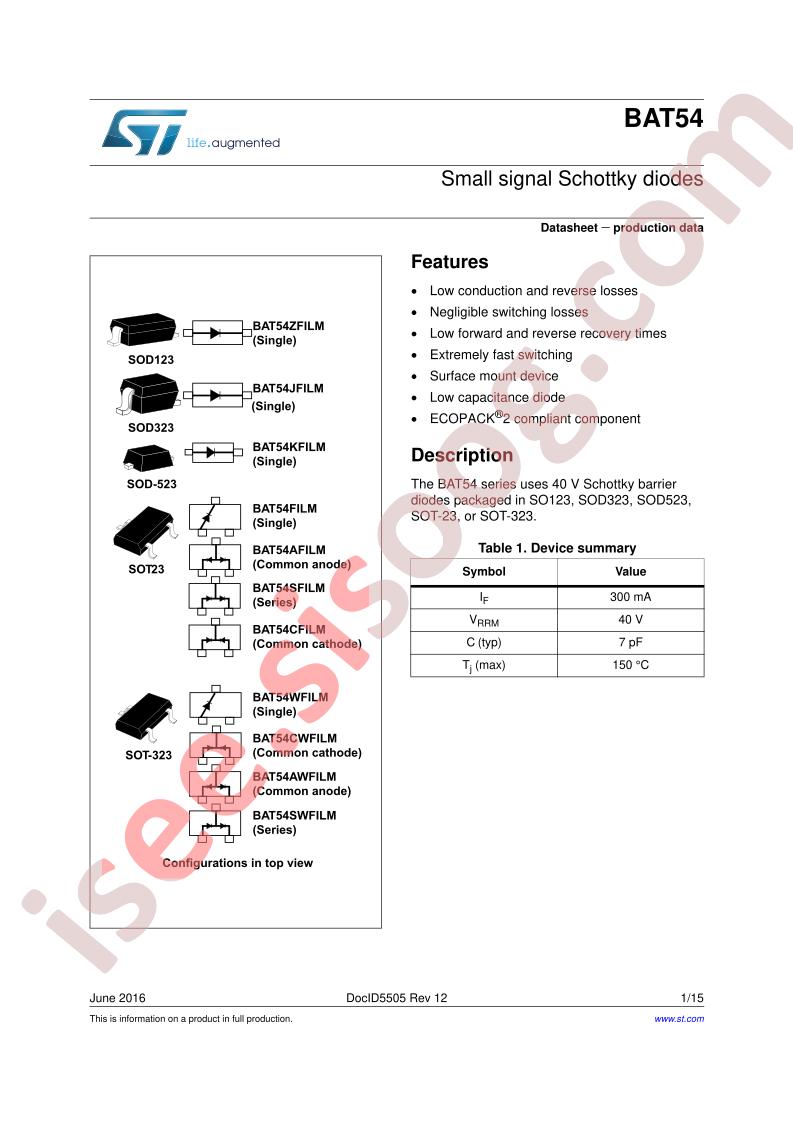

BAT54 Series Datasheet Datasheet

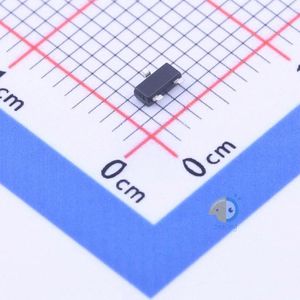

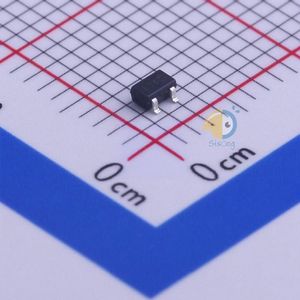

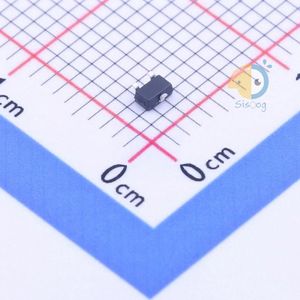

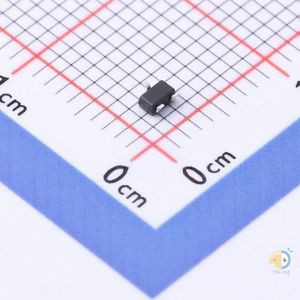

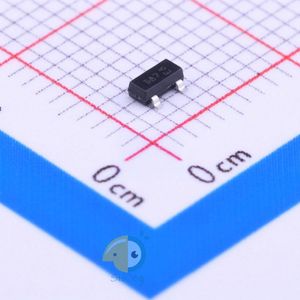

BAT54 Series Datasheet

Datasheet specifications

Datasheet's name BAT54 Series Datasheet
File size 255.806 KB
File type pdf
Number of pages 15

Download Datasheet BAT54 Series Datasheet

Download Datasheet

Other documentations

BAT54SFILM 15 pages

Technical specifications

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics BAT54JFILM
  • Reverse Voltage (Vr): 40V
  • Forward Voltage (Vf@If): 900mV@100mA
  • Reverse Leakage Current (Ir): 1uA@30V
  • Average Rectified Current (Io): 300mA
  • Package: SOD-323
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 300mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 900mV @ 100mA
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 5ns
  • Current - Reverse Leakage @ Vr: 1µA @ 30V
  • Capacitance @ Vr, F: 10pF @ 1V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SC-76, SOD-323
  • Supplier Device Package: SOD-323
  • Operating Temperature - Junction: -40°C ~ 150°C
  • Base Part Number: BAT54
  • detail: Diode Schottky 40V 300mA (DC) Surface Mount SOD-323
