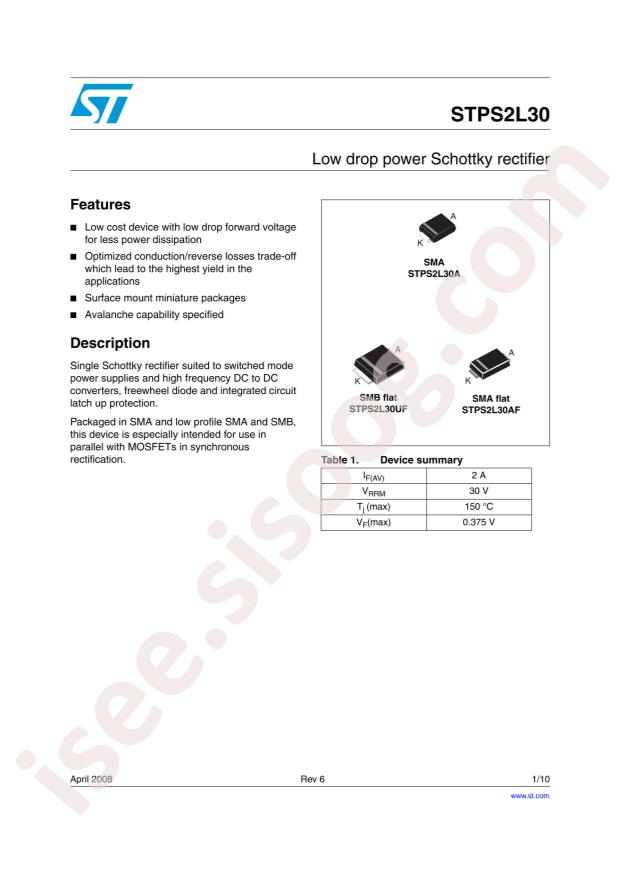

STPS2L30A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STPS2L30A
|
|
حجم فایل
|
45.62
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics STPS2L30A
-
Reverse Voltage (Vr):
30V
-
Forward Voltage (Vf@If):
450mV@2A
-
Reverse Leakage Current (Ir):
200uA@30V
-
Average Rectified Current (Io):
2A
-
Package:
SMA(DO-214AC)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
30V
-
Current - Average Rectified (Io):
2A
-
Voltage - Forward (Vf) (Max) @ If:
450mV @ 2A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
200µA @ 30V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AC, SMA
-
Supplier Device Package:
SMA
-
Operating Temperature - Junction:
150°C (Max)
-
Base Part Number:
STPS2L30
-
detail:
Diode Schottky 30V 2A Surface Mount SMA
