STPS1H100U 数据手册
其他文档

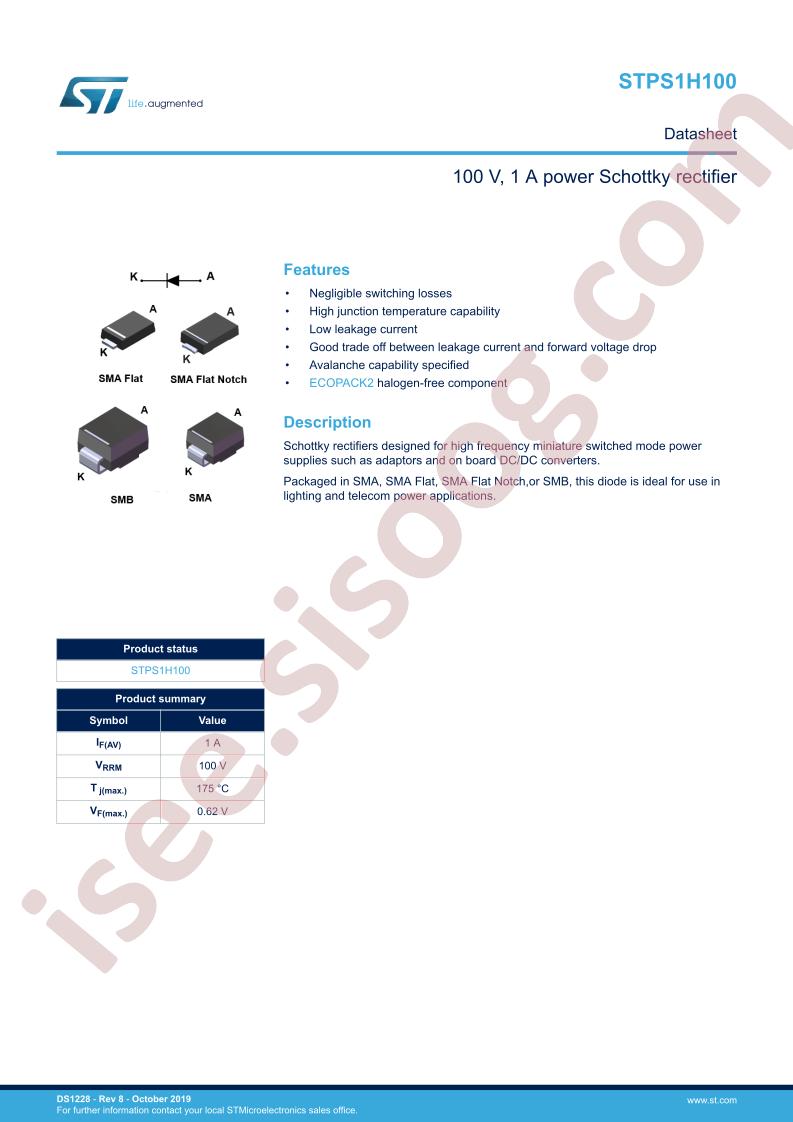

STPS1H100 15 pages
技术规格
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: STMicroelectronics STPS1H100U
- Reverse Voltage (Vr): 100V
- Forward Voltage (Vf@If): 770mV@1A
- Reverse Leakage Current (Ir): 4uA@100V
- Average Rectified Current (Io): 1A
- Package: SMB(DO-214AA)
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 770mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 4µA @ 100V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
- Operating Temperature - Junction: 175°C (Max)
- Base Part Number: STPS1
- detail: Diode Schottky 100V 1A Surface Mount SMB
