دیتاشیت HSP061-4M10

HSP061-4M10

مشخصات دیتاشیت

نام دیتاشیت HSP061-4M10
حجم فایل 476.191 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت HSP061-4M10

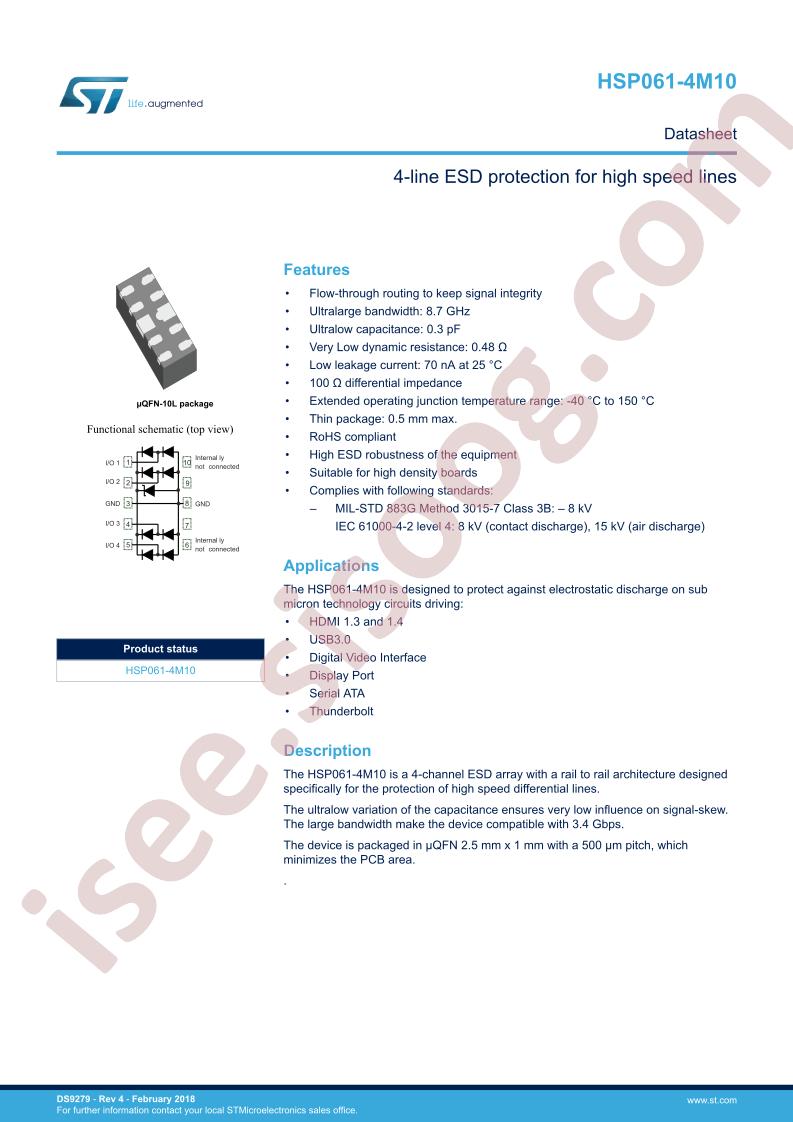

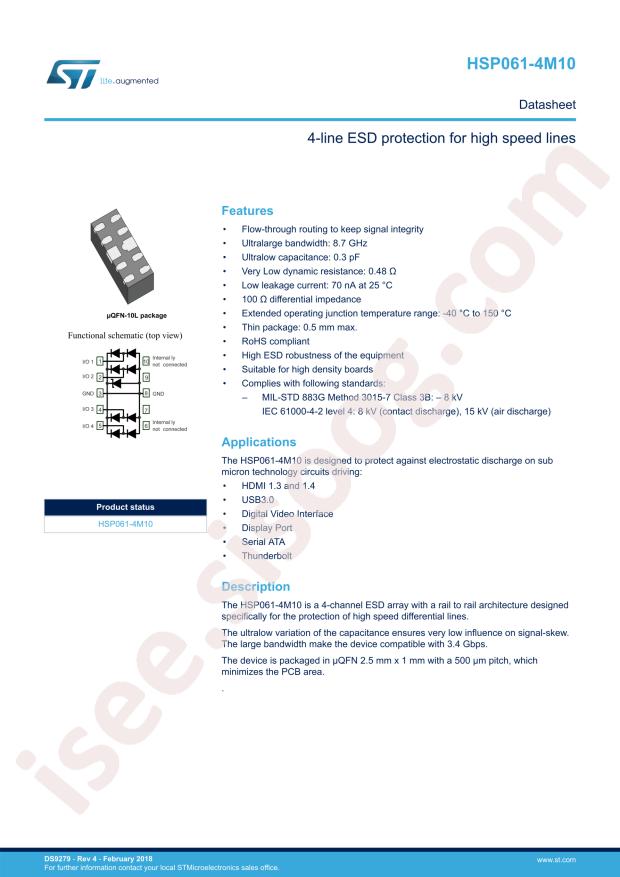

HSP061-4M10 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: HSP
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Steering (Rail to Rail)
  • Unidirectional Channels: 4
  • Voltage - Reverse Standoff (Typ): 3V
  • Voltage - Breakdown (Min): 6V
  • Voltage - Clamping (Max) @ Ipp: 15V
  • Current - Peak Pulse (10/1000µs): 1A (8/20µs)
  • Power - Peak Pulse: -
  • Power Line Protection: Yes
  • Applications: HDMI
  • Capacitance @ Frequency: 0.6pF @ 1MHz
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 10-XFDFN
  • Supplier Device Package: 10-UQFN (2.5x1)
  • Base Part Number: HSP061
  • detail: 15V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 10-UQFN (2.5x1)
