ESDLIN03-1BWY دیتاشیت

ESDLIN03-1BWY

مشخصات دیتاشیت

نام دیتاشیت ESDLIN03-1BWY
حجم فایل 57.957 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت ESDLIN03-1BWY

دانلود دیتاشیت

سایر مستندات

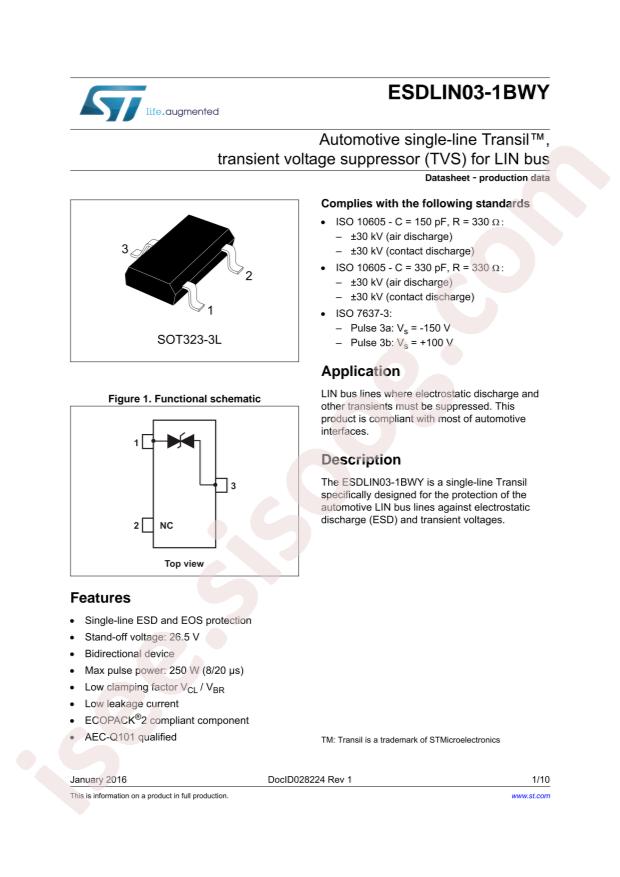

ESDLIN03-1BWY Datasheet 10 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDLIN03-1BWY
  • Clamping Voltage@Ipp: 44V
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Breakdown Voltage (VBR): 28.5V
  • Peak Pulse Power(Ppp)@8/20us: 250W
  • Junction Capacitance(Cj)@1MHz: 3pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: 3A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 26.5V
  • Package: SOT-323(SC-70)
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, ESDL, TRANSIL™
  • Packaging: Digi-Reel®
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 26.5V (Max)
  • Voltage - Breakdown (Min): 28.5V
  • Voltage - Clamping (Max) @ Ipp: 44V
  • Current - Peak Pulse (10/1000µs): 3A (8/20µs)
  • Power - Peak Pulse: 250W
  • Power Line Protection: No
  • Applications: Automotive
  • Capacitance @ Frequency: 3pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-323-3
  • Base Part Number: ESDLIN03
  • detail: 44V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323-3
