LM211DT 数据手册
其他文档

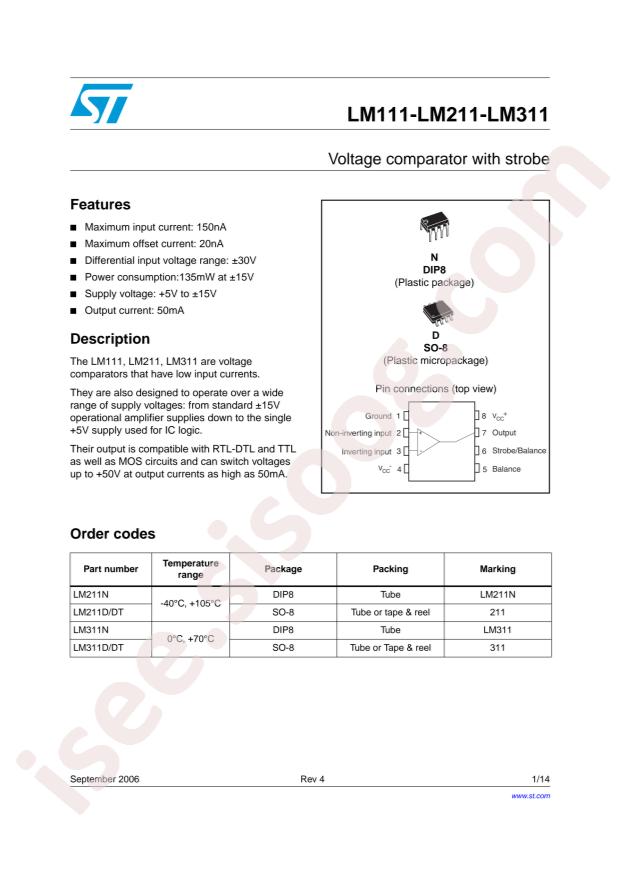

LM111,211,311 14 pages
技术规格
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: STMicroelectronics LM211DT
- Output Type: DTL;MOS;开集;开射;RTL;TTL
- Supply Current: 6mA
- Supply Voltage: 5V~30V;2.5V~15V
- Number of Elements: 1
- Operating Temperature: -40°C~+105°C
- Input Bias Current (Ib): 0.1uA
- Input Offset Voltage (Vos): 3mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): -
- Package: SOP-8
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: General Purpose
- Voltage - Supply, Single/Dual (±): 5V ~ 30V, ±2.5V ~ 15V
- Voltage - Input Offset (Max): 3mV @ ±15V
- Current - Input Bias (Max): 0.1µA @ ±15V
- Current - Output (Typ): 50mA
- Current - Quiescent (Max): 6mA
- CMRR, PSRR (Typ): -
- Propagation Delay (Max): -
- Hysteresis: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SO
- Base Part Number: LM211
- detail: Comparator General Purpose DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL 8-SO
