STTH2R02U دیتاشیت

STTH2R02U

مشخصات دیتاشیت

نام دیتاشیت STTH2R02U
حجم فایل 42.995 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت STTH2R02U

دانلود دیتاشیت

سایر مستندات

STTH2R02 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: STMicroelectronics STTH2R02U
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 200V
  • Operating Temperature: +175°C@(Tj)
  • Forward Voltage (Vf@If): 890mV@2A
  • Reverse Leakage Current: 3uA@200V
  • Reverse Recovery Time (trr): 15ns
  • Average Rectified Current (Io): 2A

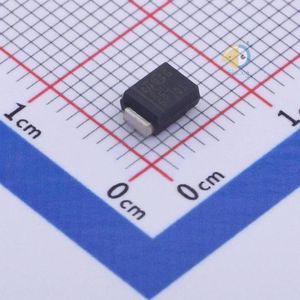

  • Package: SMB
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 200V
  • Current - Average Rectified (Io): 2A
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 2A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 3µA @ 200V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AA, SMB
  • Supplier Device Package: SMB
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STTH2R
  • detail: Diode Standard 200V 2A Surface Mount SMB
