STD15NF10T4 دیتاشیت

STD15NF10T4

مشخصات دیتاشیت

نام دیتاشیت STD15NF10T4
حجم فایل 56.059 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

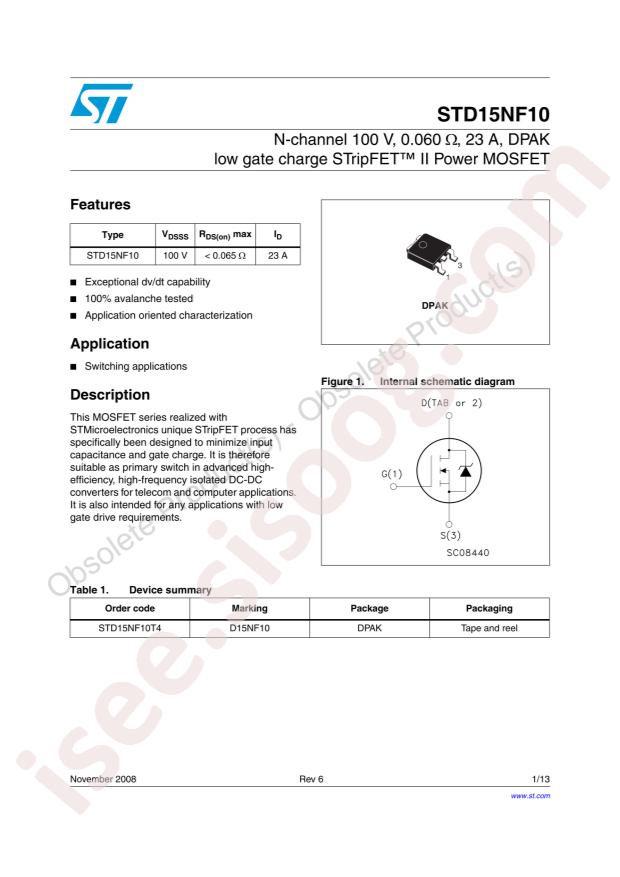

مشاهده دیتاشیت STD15NF10T4

دانلود دیتاشیت

سایر مستندات

STD15NF10 13 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD15NF10T4
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 70W
  • Total Gate Charge (Qg@Vgs): 40nC@10V
  • Drain Source Voltage (Vdss): 100V
  • Input Capacitance (Ciss@Vds): 870pF@25V
  • Continuous Drain Current (Id): 23A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 65mΩ@10V,12A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 65mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 870pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 70W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD15
  • detail: N-Channel 100V 23A (Tc) 70W (Tc) Surface Mount DPAK
