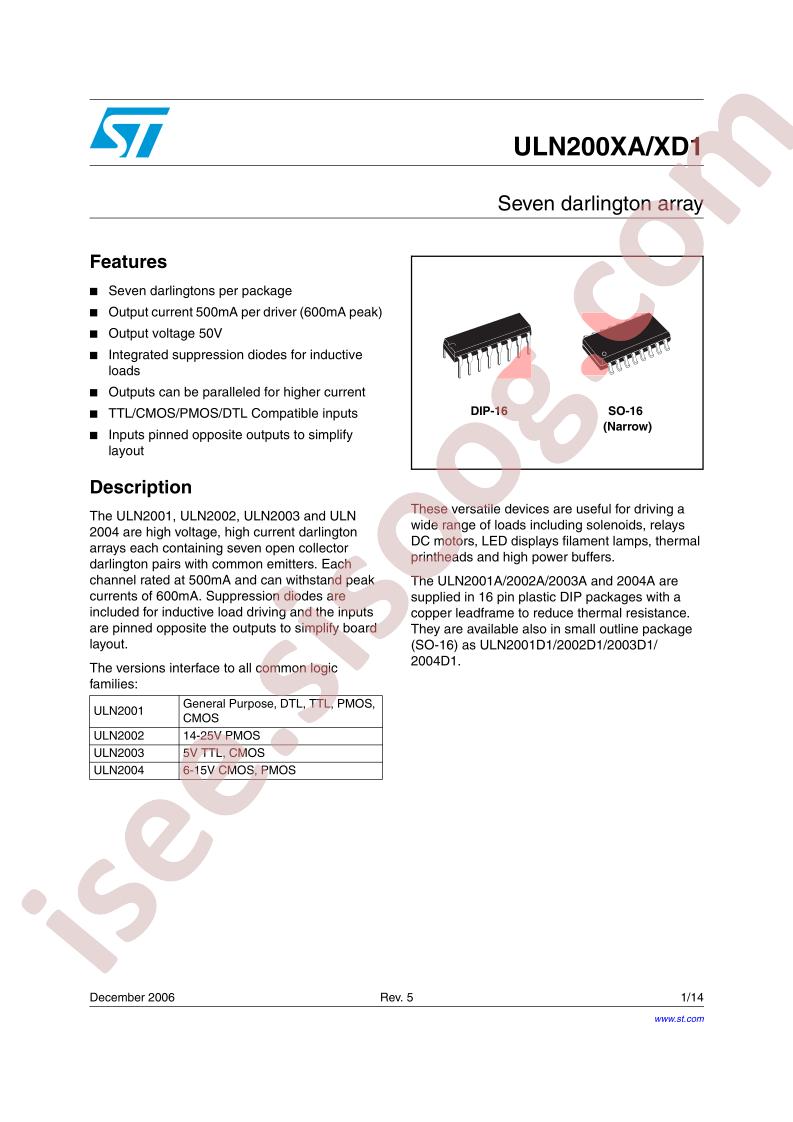

دیتاشیت ULN2001D1013TR
مشخصات دیتاشیت
| نام دیتاشیت | ULN2001D1013TR |
|---|---|
| حجم فایل | 167.682 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |
ULN2001D1013TR |
دانلود دیتاشیت |
|---|
سایر مستندات
ULN200x(A,D1) 17 pages
ULN2004A 17 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistor Arrays
- Datasheet: STMicroelectronics ULN2001D1013TR
- Package: SOP-16
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Transistor Type: 7 NPN Darlington
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
- Current - Collector Cutoff (Max): 50µA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 350mA, 2V
- Power - Max: -
- Frequency - Transition: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SO
- Base Part Number: ULN2001
- detail: Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SO
