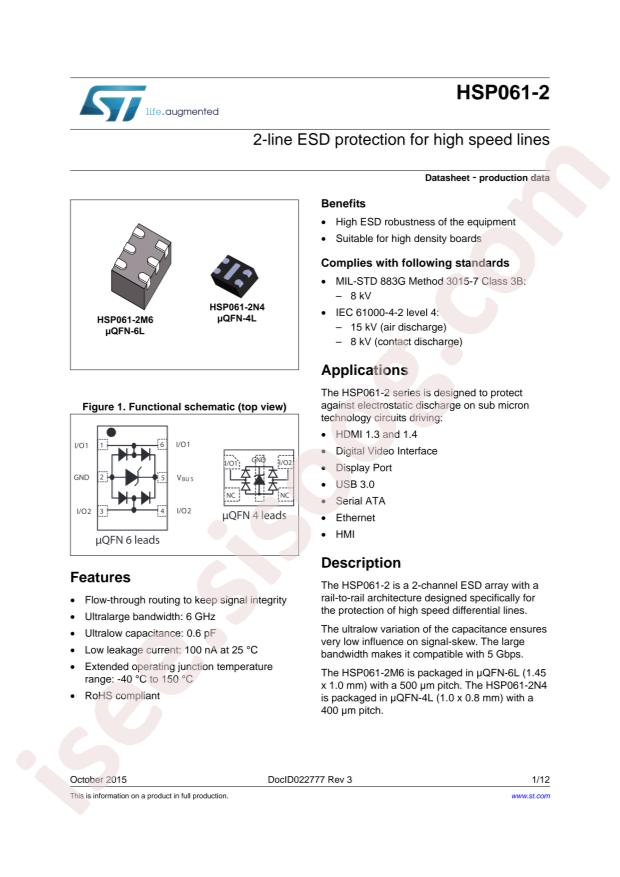

HSP061-2N4 数据手册
其他文档
HSP061-2 12 pages
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: STMicroelectronics HSP061-2N4
- Number of Lines: 2
- Clamping Voltage@Ipp: -
- Operating Temperature: -40°C~+150°C@(Tj)
- Breakdown Voltage (VBR): 6V
- Peak Pulse Power(Ppp)@8/20us: -
- Junction Capacitance(Cj)@1MHz: -
- Peak Pulse Current(Ipp)@8/20us: -
- Reverse Stand-Off Voltage (Vrwm): 3V
- Package: UQFN-4(1x0.8)
- Manufacturer: STMicroelectronics
- Series: HSP
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 2
- Voltage - Reverse Standoff (Typ): 3V
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: -
- Current - Peak Pulse (10/1000µs): -
- Power - Peak Pulse: -
- Power Line Protection: Yes
- Applications: Ethernet, HDMI
- Capacitance @ Frequency: 0.6pF @ 200MHz ~ 3GHz
- Mounting Type: Surface Mount
- Package / Case: 4-XFDFN Exposed Pad
- Supplier Device Package: 4-uQFN (1x0.8)
- Base Part Number: HSP061
- detail: Clamp Ipp Tvs Diode Surface Mount 4-uQFN (1x0.8)
