دیتاشیت TPS72501DCQR

مشخصات دیتاشیت

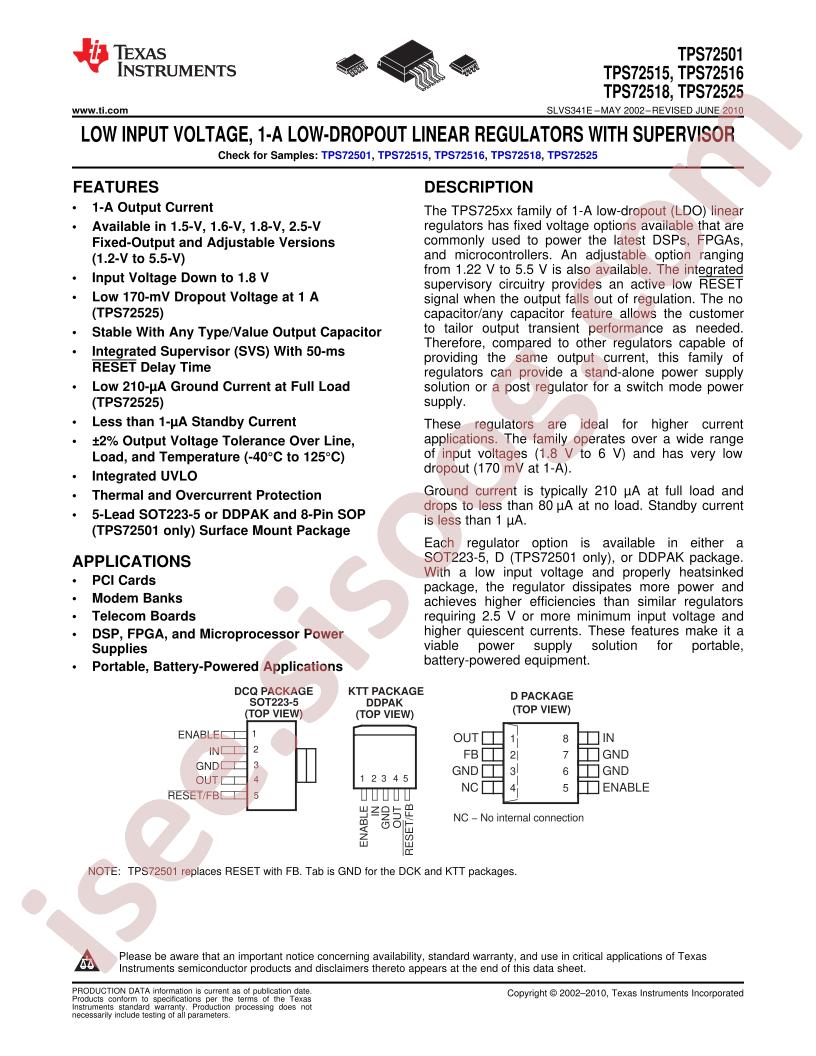

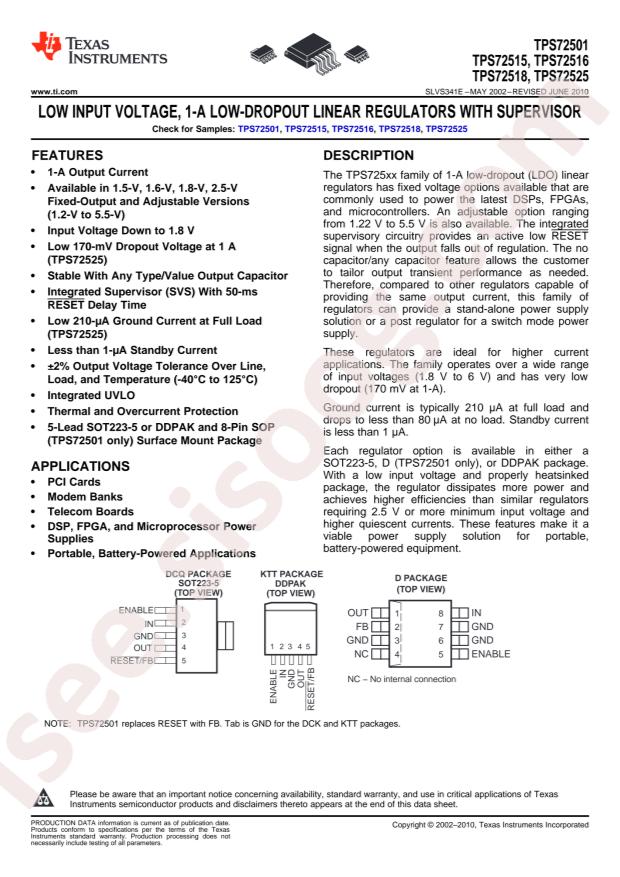

دانلود دیتاشیت TPS725xx Datasheet	TPS725xx Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS72501DCQR
Output Type: Adjustable
Output Current: 1A
Output Voltage: 1.22V~5.5V
Dropout Voltage: 280mV@(1A)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 6V
Operating Temperature: -40°C~+125°C
Quiescent Current (Ground Current): 225uA
Power Supply Rejection Ratio (PSRR): 60dB@(1kHz)
Package: SOT-223-6
Manufacturer: Texas Instruments
Mounting Type: Surface Mount
Current - Supply (Max): 325µA
Control Features: Enable, Reset
Packaging: Cut Tape (CT)
Voltage - Output (Max): 5.5V
Voltage - Output (Min/Fixed): 1.22V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Supplier Device Package: SOT-223-6
Current - Quiescent (Iq): 225µA
Part Status: Active
Current - Output: 1A
Series: -
Number of Regulators: 1
PSRR: 60dB (1kHz)
Base Part Number: TPS725
Voltage Dropout (Max): 0.28V @ 1A
Package / Case: SOT-223-6
Output Configuration: Positive
Voltage - Input (Max): 6V
detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-6
