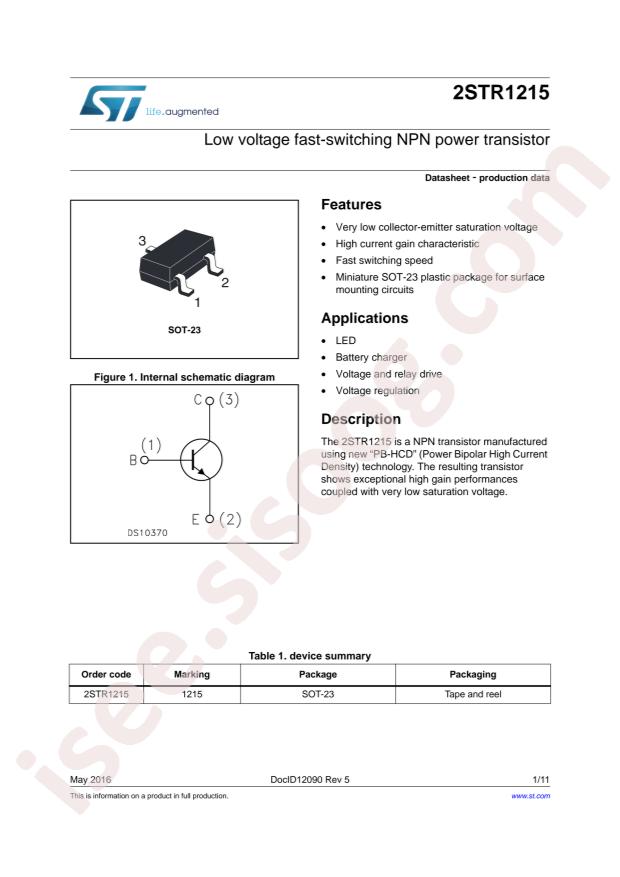

2STR1215 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2STR1215
|
|
حجم فایل
|
49.875
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
STMicroelectronics 2STR1215
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
1.5A
-
Power Dissipation (Pd):
500mW
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
200@500mA,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
15V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
400mV@2A,200mA
-

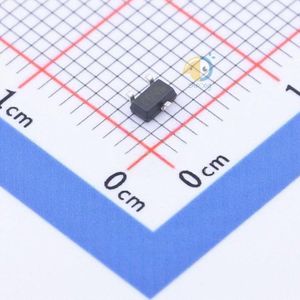

Package:
SOT-23
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
1.5A
-
Voltage - Collector Emitter Breakdown (Max):
15V
-
Vce Saturation (Max) @ Ib, Ic:
850mV @ 200mA, 2A
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 500mA, 2V
-
Power - Max:
500mW
-
Frequency - Transition:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3
-
Base Part Number:
2STR
-
detail:
Bipolar (BJT) Transistor NPN 15V 1.5A 500mW Surface Mount SOT-23-3
