دیتاشیت STPS130A

STPS130

مشخصات دیتاشیت

نام دیتاشیت STPS130
حجم فایل 361.57 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت STPS130

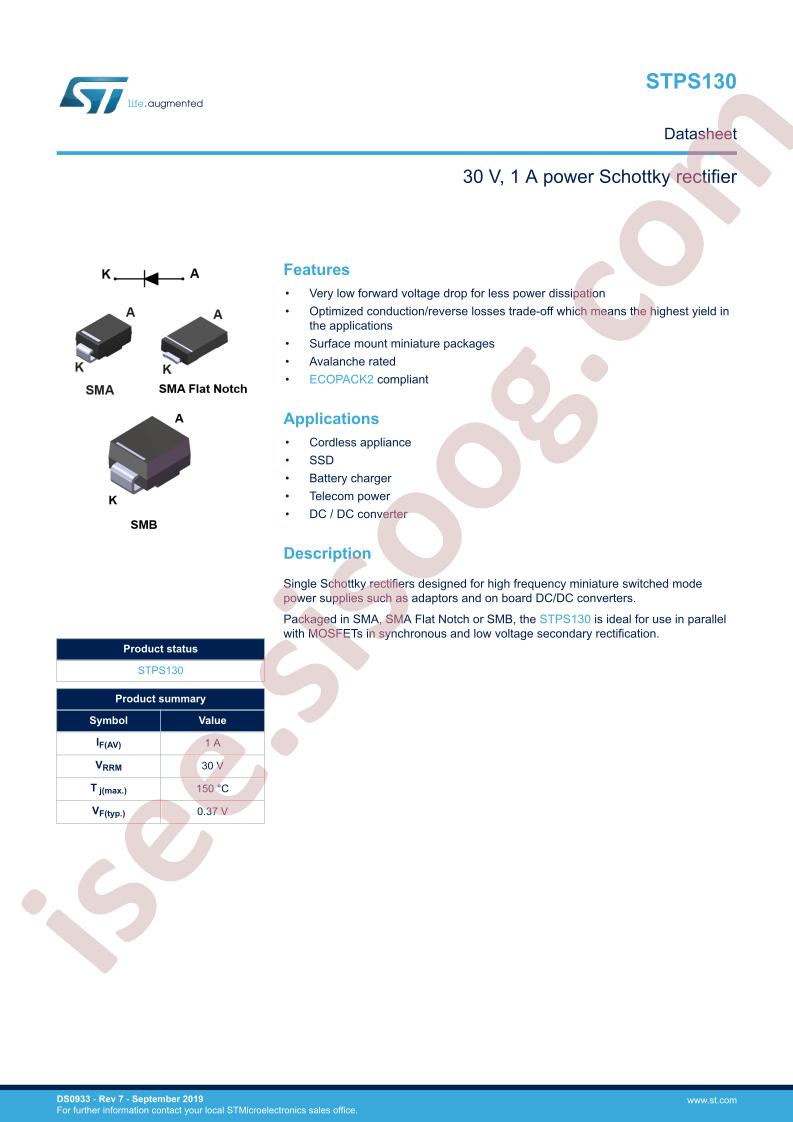

STPS130 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS130A
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 30V
  • Forward Voltage (Vf@If): 630mV@2A
  • Reverse Leakage Current (Ir): 10uA@30V
  • Average Rectified Current (Io): 1A
  • Package: SMA(DO-214AC)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 1A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 10µA @ 30V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AC, SMA
  • Supplier Device Package: SMA (DO-214AC)
  • Operating Temperature - Junction: 150°C (Max)
  • Base Part Number: STPS130
  • detail: Diode Schottky 30V 1A Surface Mount SMA (DO-214AC)
