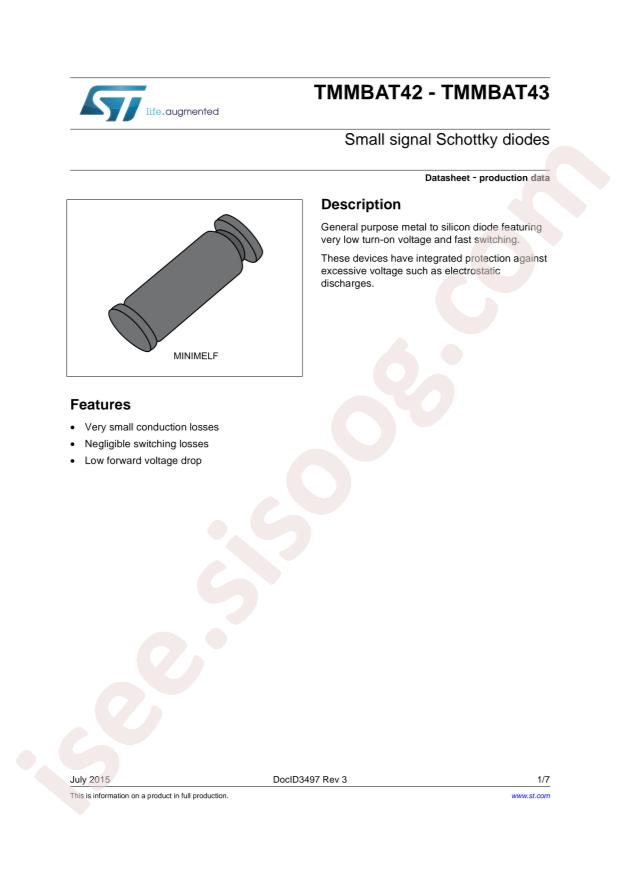

دیتاشیت TMMBAT42FILM
مشخصات دیتاشیت
| نام دیتاشیت |
TMMBAT42FILM
|
| حجم فایل |
35.22
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics TMMBAT42FILM
-
Reverse Voltage (Vr):
30V
-
Forward Voltage (Vf@If):
1V@200mA
-
Reverse Leakage Current (Ir):
500nA@25V
-
Average Rectified Current (Io):
200mA
-
Package:
MiniMELF(SOD-80)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
30V
-
Current - Average Rectified (Io):
200mA (DC)
-
Voltage - Forward (Vf) (Max) @ If:
1V @ 200mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Reverse Recovery Time (trr):
5ns
-
Current - Reverse Leakage @ Vr:
500nA @ 25V
-
Capacitance @ Vr, F:
7pF @ 1V, 1MHz
-
Mounting Type:
Through Hole
-
Package / Case:
DO-204AH, DO-35, Axial
-
Supplier Device Package:
DO-35
-
Operating Temperature - Junction:
-65°C ~ 125°C
-
Base Part Number:
BAT42
-
detail:
Diode Schottky 30V 200mA (DC) Through Hole DO-35
